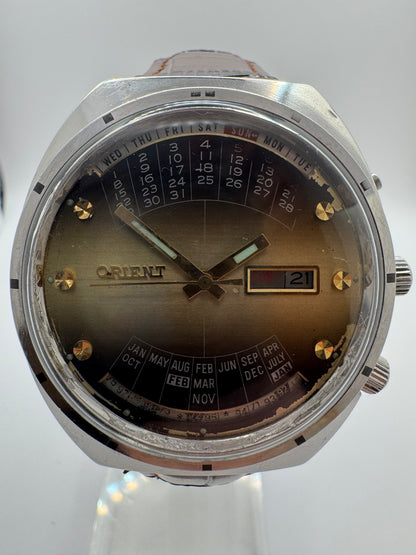

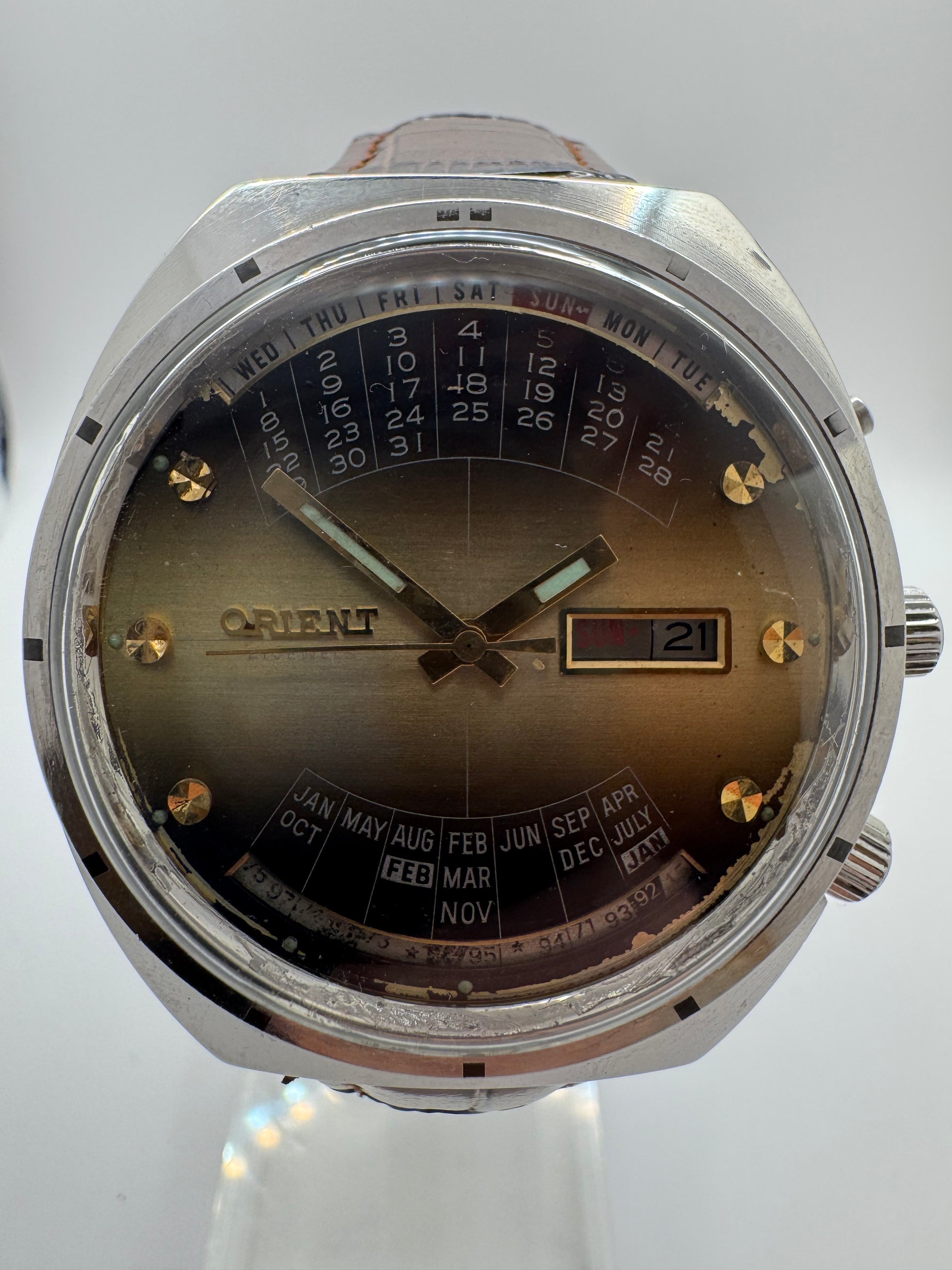

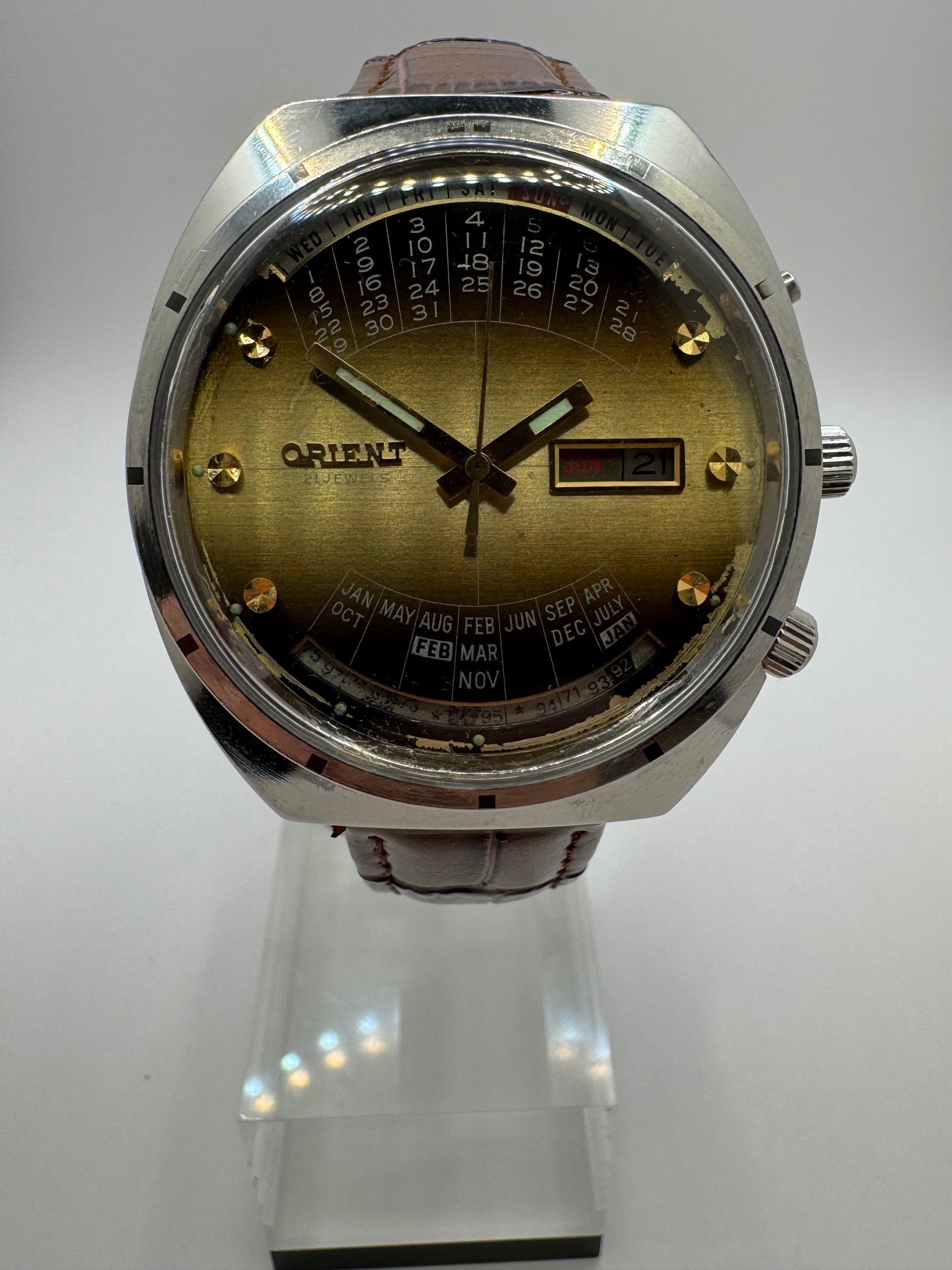

Orient "Multi-Calendar" Calendar Watch - Reference Y469672-4A - Japan, c. 1970s

Freshly Serviced in Japan (2025)

This exceptional and rare Orient calendar watch was fully serviced in 2025 by a Japanese watchmaker (disassembly, cleaning, oiling, regulation) and is technically in very good condition. It is a model of high technical and design interest from a period when Japanese manufacturers experimented with complex displays – significantly beyond the international standard of the time.

Historical and Technical Background

In the late 1960s and 1970s, Orient developed several so-called Multi-Calendar models that deliberately distinguished themselves from typical Day-Date watches. Unlike simple date or day-of-the-week displays, this watch combines multiple calendar levels on the dial, making the calendar itself the central design element.

The reference Y469672-4A presented here is one of the larger and technically more sophisticated variants of this line and is exceptionally large for a Japanese watch of this era.

The Special Calendar Mechanism (Core Feature of the Watch)

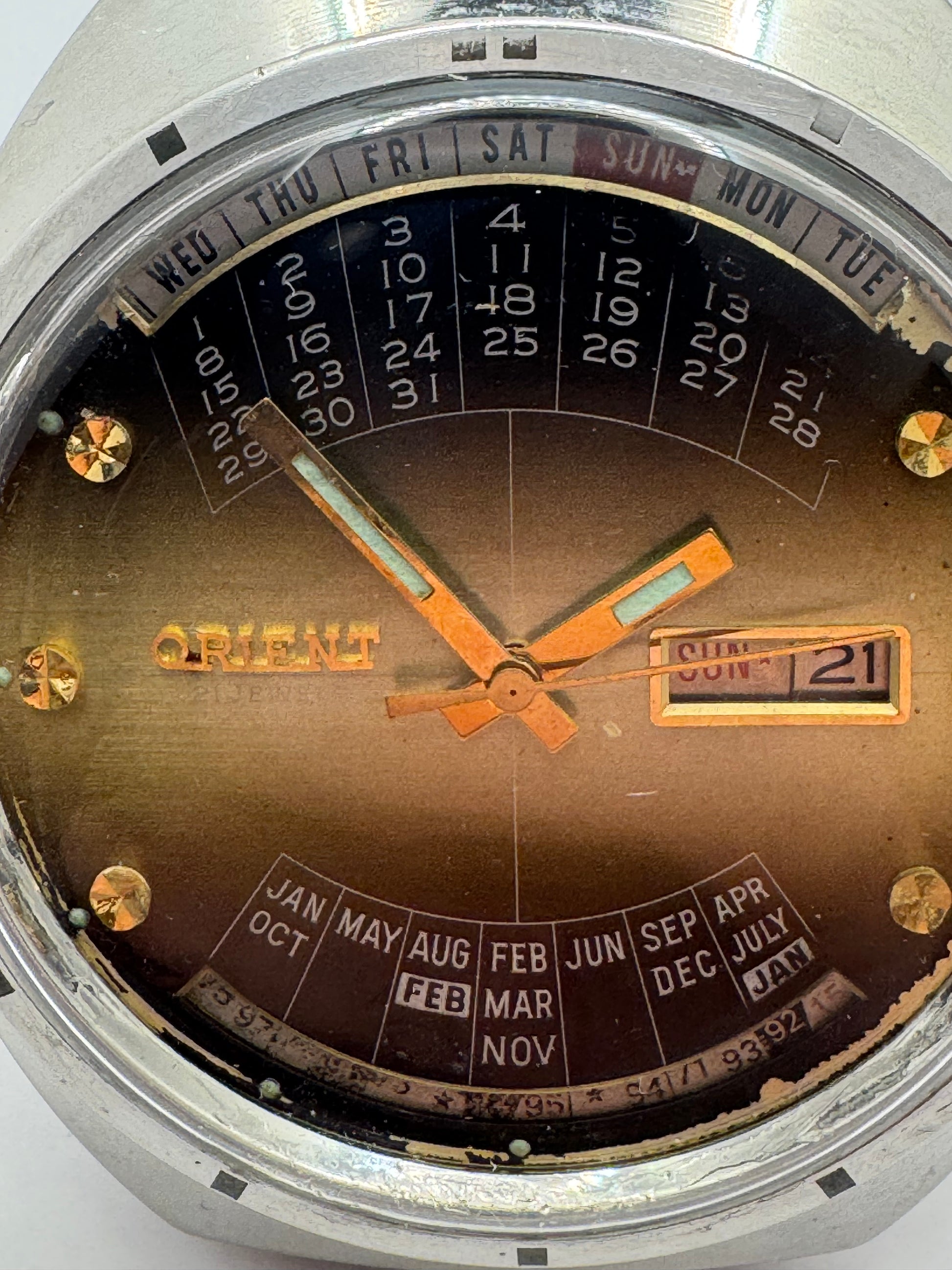

The calendar of this Orient is fully mechanically integrated and consists of three functionally separate but interconnected displays:

• Day of the Week and Date (Classic)
  • Window at 3 o'clock
  • Bilingual Day-Date display (typical for Japan)
  • Quick setting via the crown



• Month Display (Lower Dial Semicircle)
  • Semicircular scale with months January–December
  • Display via a separate calendar disc system
  • The current month is visually highlighted



• Date Matrix / Month Overview (Upper Dial Semicircle)
• Segmented display of possible calendar days (1–31)
• In combination with the day of the week and month display, the complete calendar structure of a month can be read
• Mechanically controlled via additional switching stages in the movement

👉 Important:
This calendar is not a perpetual calendar in the modern sense, but a mechanical multi-calendar that provides the wearer with visual orientation regarding the week, month, and date structure – a typical example of Japanese engineering creativity of the 1970s.

Operation (Summarized for Practical Use)

• Setting the time:
  Pull out the crown and adjust the hands

• Setting the calendar:

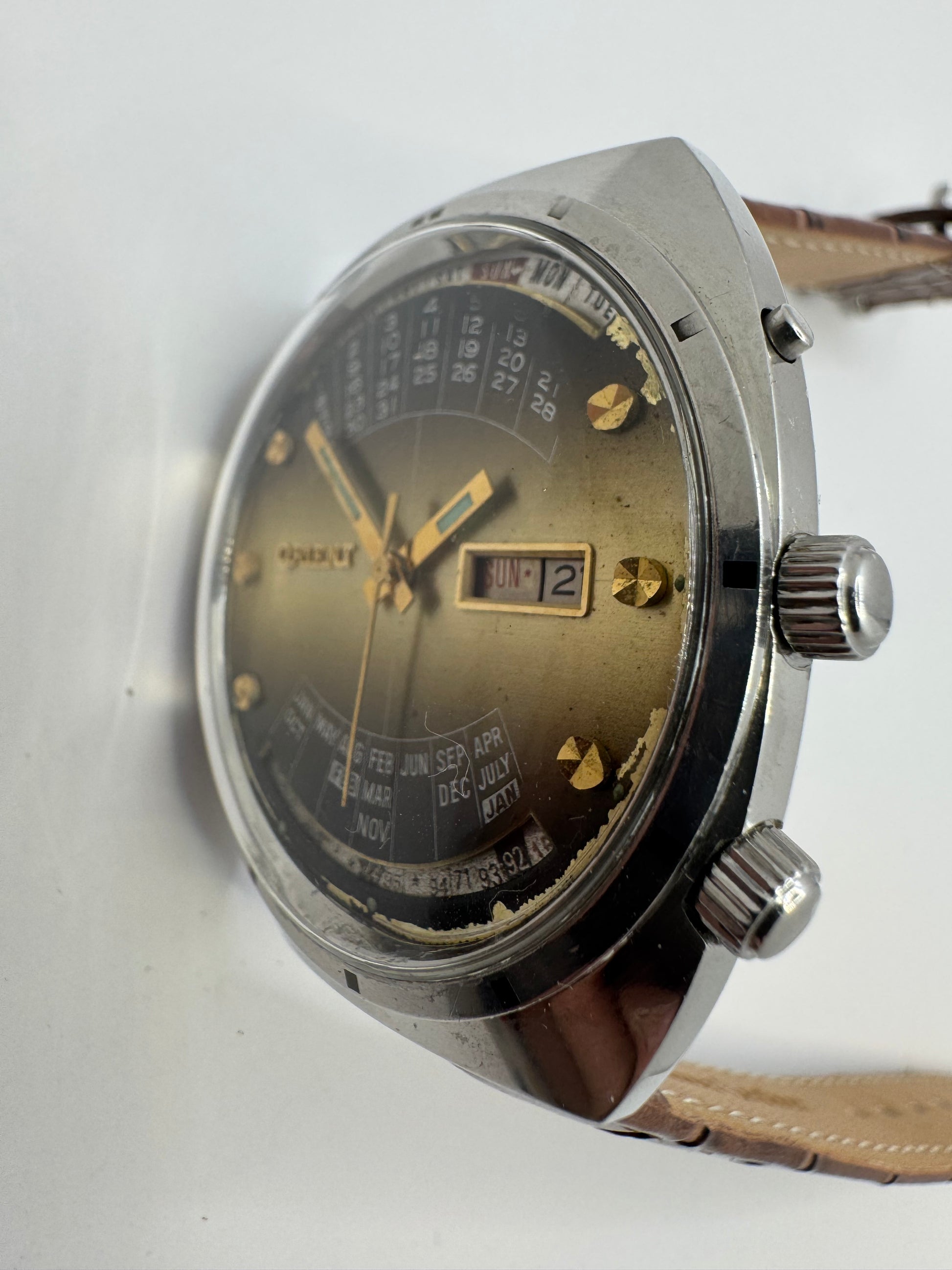

  Via the side pushers (at 2 o'clock / 4 o'clock) or via the crown – depending on the function
  (typical: separate switching for date/day of the week and month display)

• Note:
  Do not adjust calendar functions between approx. 9:00 PM and 3:00 AM (classic mechanical protection period)

Condition

• Technical: very good, freshly serviced (Japan, 2025)
• Dial: age-related small paint chips at the edge, authentic and not distracting
• Case: very well preserved, age-appropriate signs of wear
• Glass: good

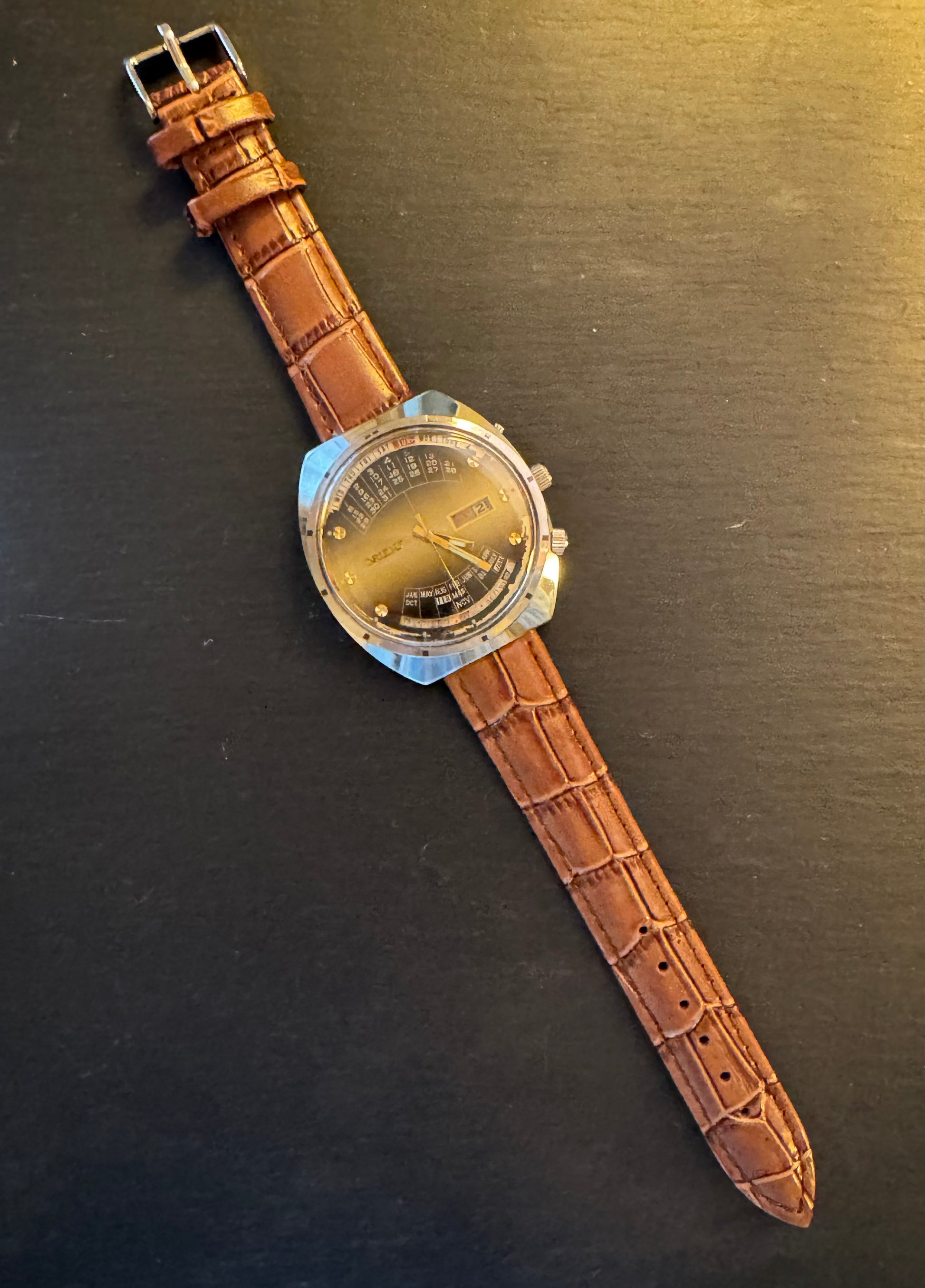

• New leather strap fitted

Technical Specifications

• Brand: Orient
• Reference: Y469672-4A
• Movement: mechanical (automatic)
• Calendar: Multi-Calendar (Day of the week, Date, Month, Date Matrix)
• Case material: Stainless steel
• Case size: approx. 42.3 × 46.0 mm
• Height: 12.7 mm
• Lug width: 18 mm
• Weight: 74 g (incl. new leather strap)
• Water resistance: no guarantee (vintage)

Classification & Collector's Value

This watch is not aimed at the classic dress watch buyer, but at collectors who appreciate technical peculiarities and niche Japanese models. Comparable Orient Multi-Calendar models rarely appear on the European market – especially in serviced condition.

Warranty (used)

This is a used item. The limitation period for claims for defects (statutory warranty) is 12 months from delivery.

Note

As this is a used watch, no water resistance can be guaranteed. To protect the movement, the watch should not come into contact with water or moisture.
