Seiko 5 Sports JDM Speed-Timer 6139-7020 – Caliber 6139, 21 jewels, Suwa Seikosha – Inner bezel, blue regatta counter – May 1971 – freshly serviced

In 1969, Seiko introduced the caliber 6139 – one of the world's first automatic chronographs, built with a column wheel and vertical clutch, at a time when Zenith and the Swiss Chronomatic group were vying for the same premiere.

This watch houses that movement in its high-end version, within a case that Seiko never exported.

Japan Only

The 6139-7020 was carried under a single reference number and remained a model exclusively for the Japanese domestic market throughout its entire production period. Unlike many Seiko chronographs, there was no export variant with a slightly modified dial – this model simply never reached Europe.

It belongs to the Speed-Timer series, Seiko’s sports chronograph program, which was closely linked to motorsports and timing at racing events. The models in this line feature the orange Speed-Timer lettering and consistently colorful dial details typical of the early 1970s.

Within the 6139 family, the 7020 is the superior version: while common export models ran on 17 jewels, this watch has the 21-jewel version.

What the watch can do

Chronograph. Central chronograph hand in orange, plus a counter at six o'clock. It is started and stopped via the top pusher, and reset via the bottom one.

Internal rotating bezel. The black ring with the 60-minute scale sits under the crystal and can be rotated in both directions via the crown – as a countdown scale or for measuring longer periods. Because it is located internally, it cannot be adjusted accidentally and does not affect the water resistance of the case.

Regatta counter. The sub-dial counts thirty minutes, with the first fifteen minutes highlighted in bold blue. This is not decorative: before a sailing start, there is a set countdown, and the blue sector makes this phase readable at a glance. Seiko incorporated this function into several Speed-Timer models.

Day and date at three o'clock, both with quick-set, the day wheel being bilingual in Kanji and English. Sunday appears in red, in accordance with the Japanese calendar convention.

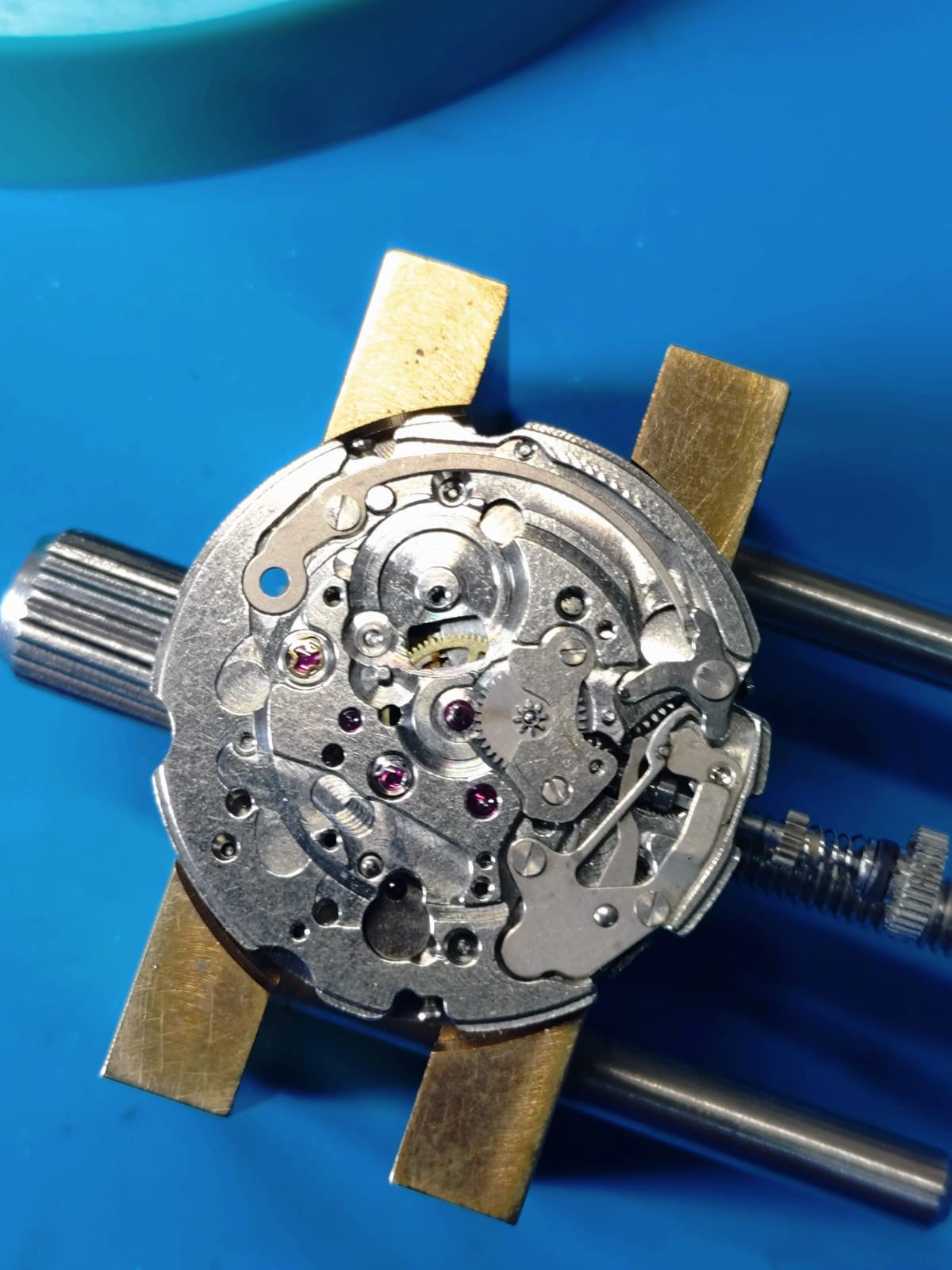

The caliber 6139

• Automatic chronograph with column wheel and vertical clutch
• 21 jewels – the high-end version compared to the 17-jewel export models
• 21,600 vibrations per hour
• Day and date with quick-set
• Manufactured by Suwa Seikosha, Japan

Two technical points deserve mention. The column wheel is the more complex of the two common control mechanisms for a chronograph; it ensures a precise, defined pressure point when starting and stopping. The vertical clutch prevents the characteristic jumping of the chronograph hand when starting, which is familiar from movements with a lateral clutch – such as the Omega caliber 861 of the Speedmaster.

Seiko incorporated both into a production movement in 1969. This is why the 6139s are considered today to be the most technically serious of the early automatic chronograph generations.

Regarding operation: the 6139 cannot be wound by hand and has no hacking feature. If the watch has been sitting, you start it by gently swinging it.

This watch dates to May 1971, making it from the early production phase of the reference; it likely houses the caliber in the 6139A version, which was superseded by the 6139B around the end of 1971.

Dial and case

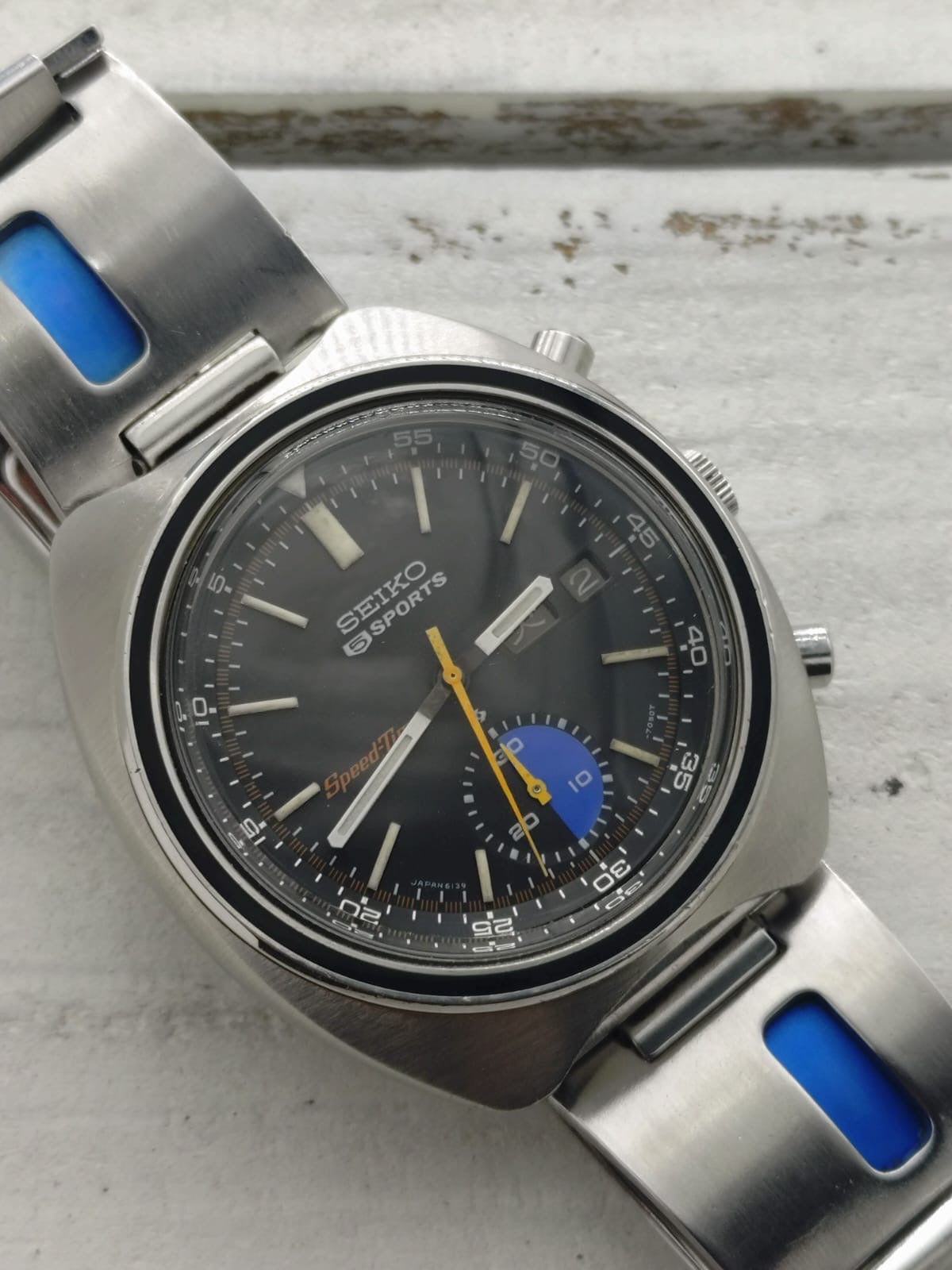

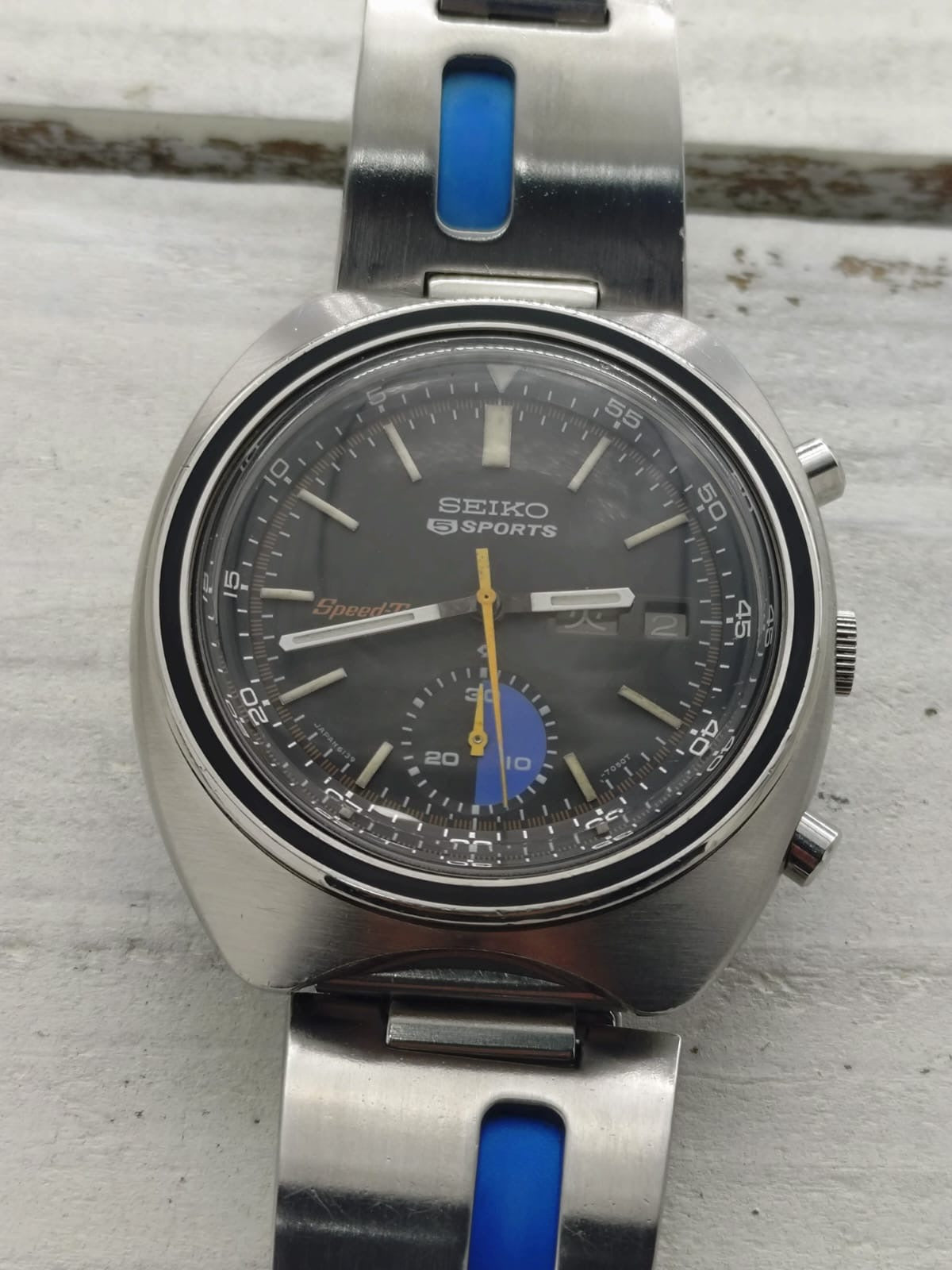

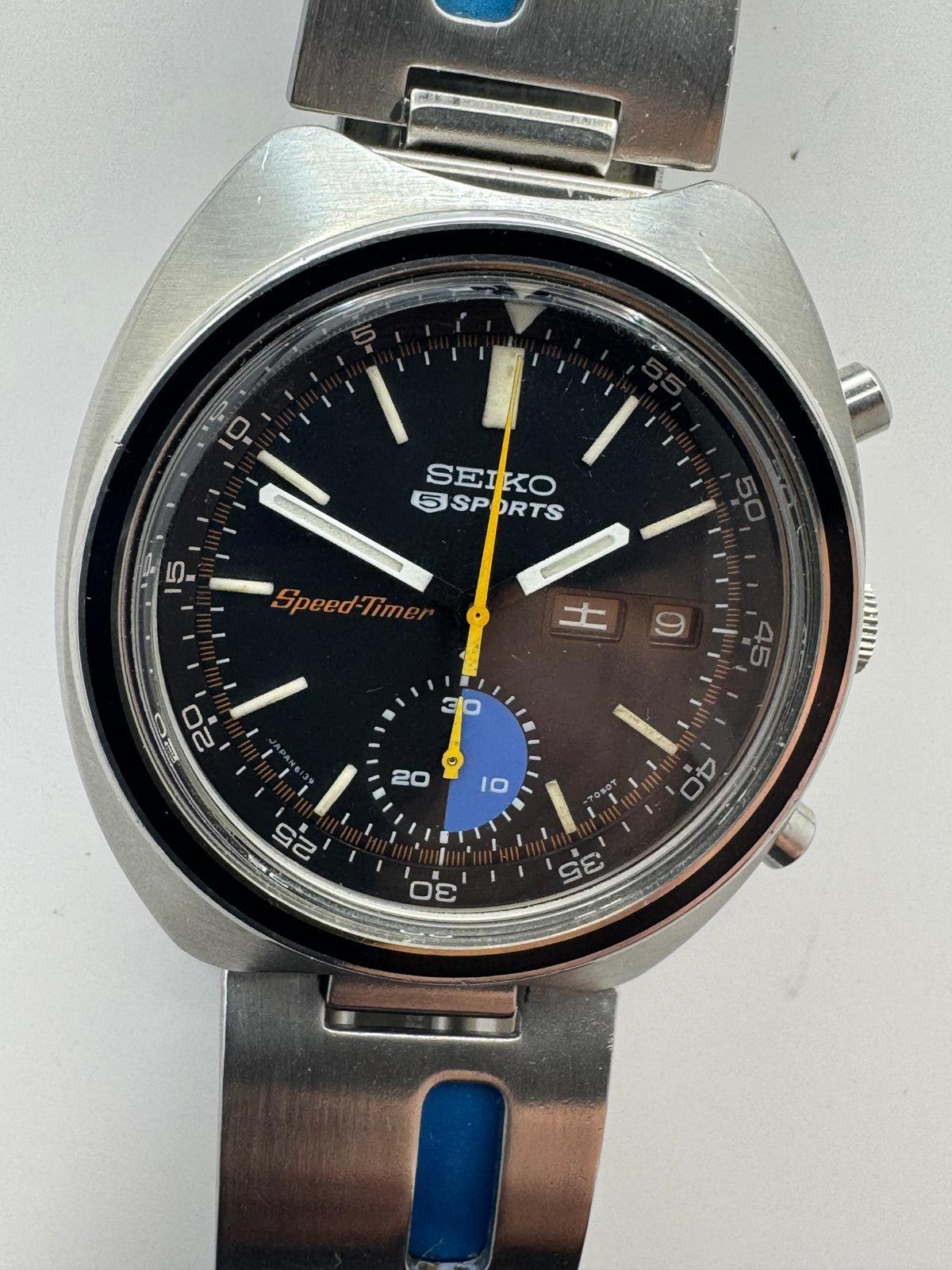

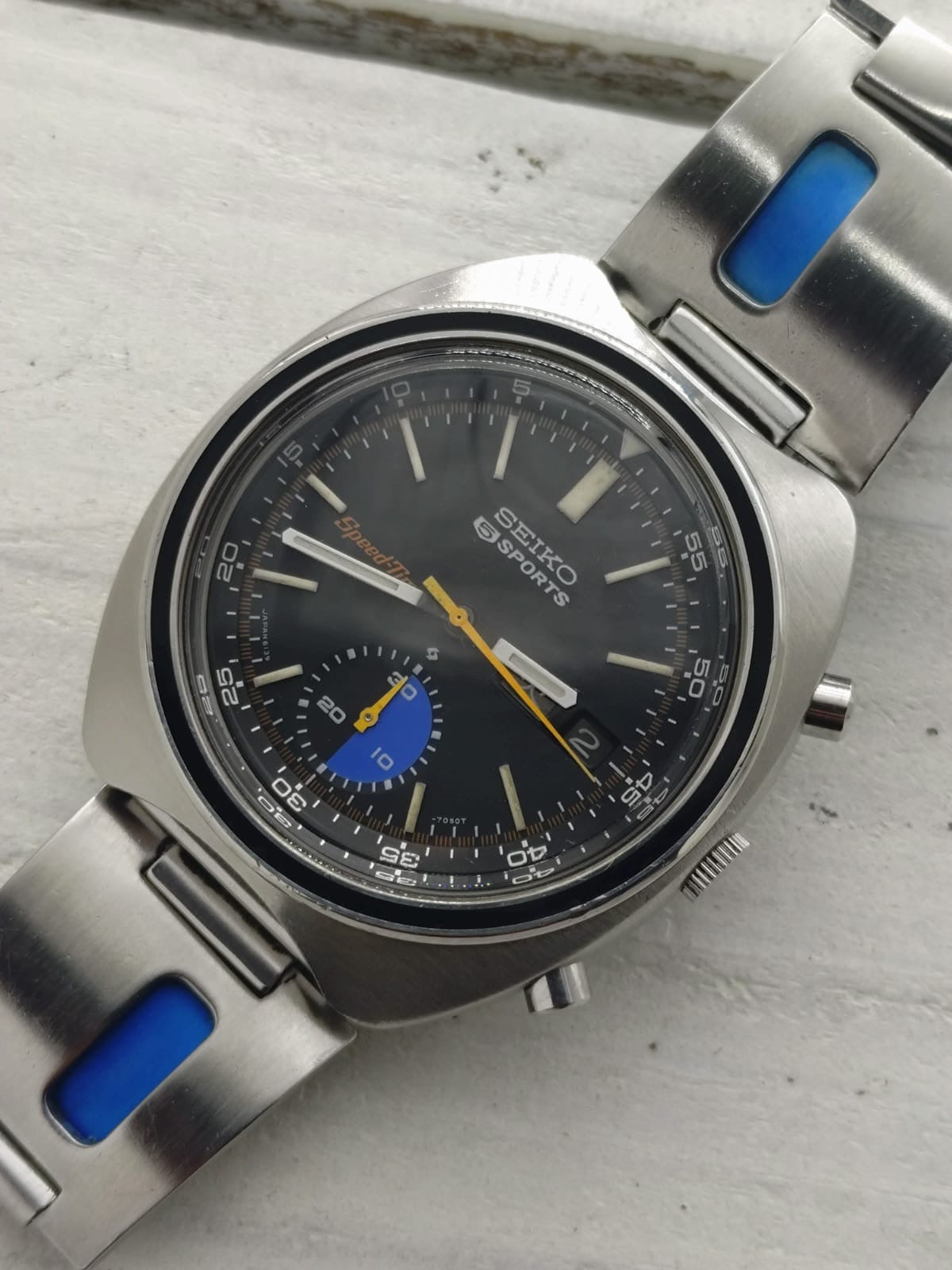

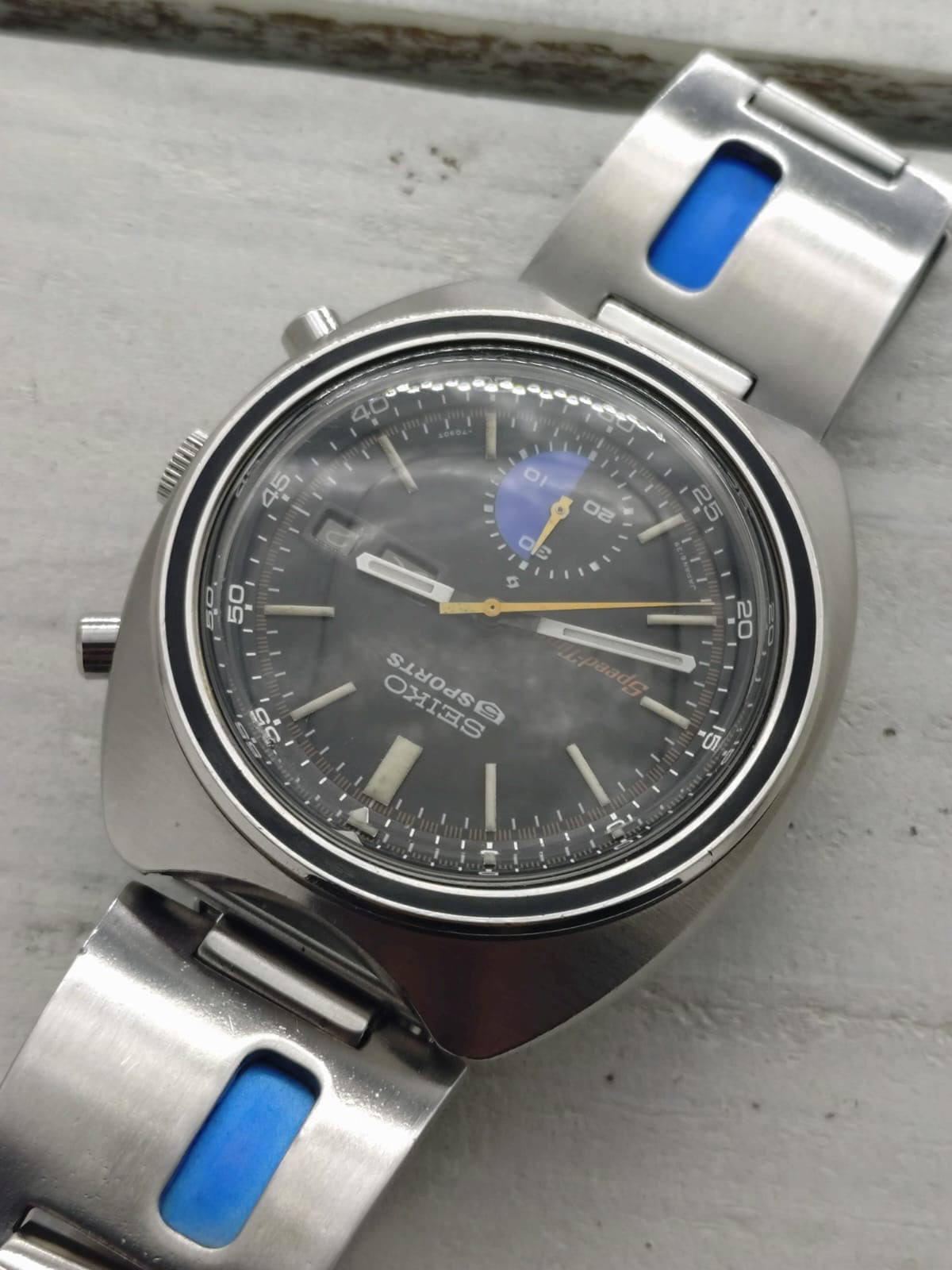

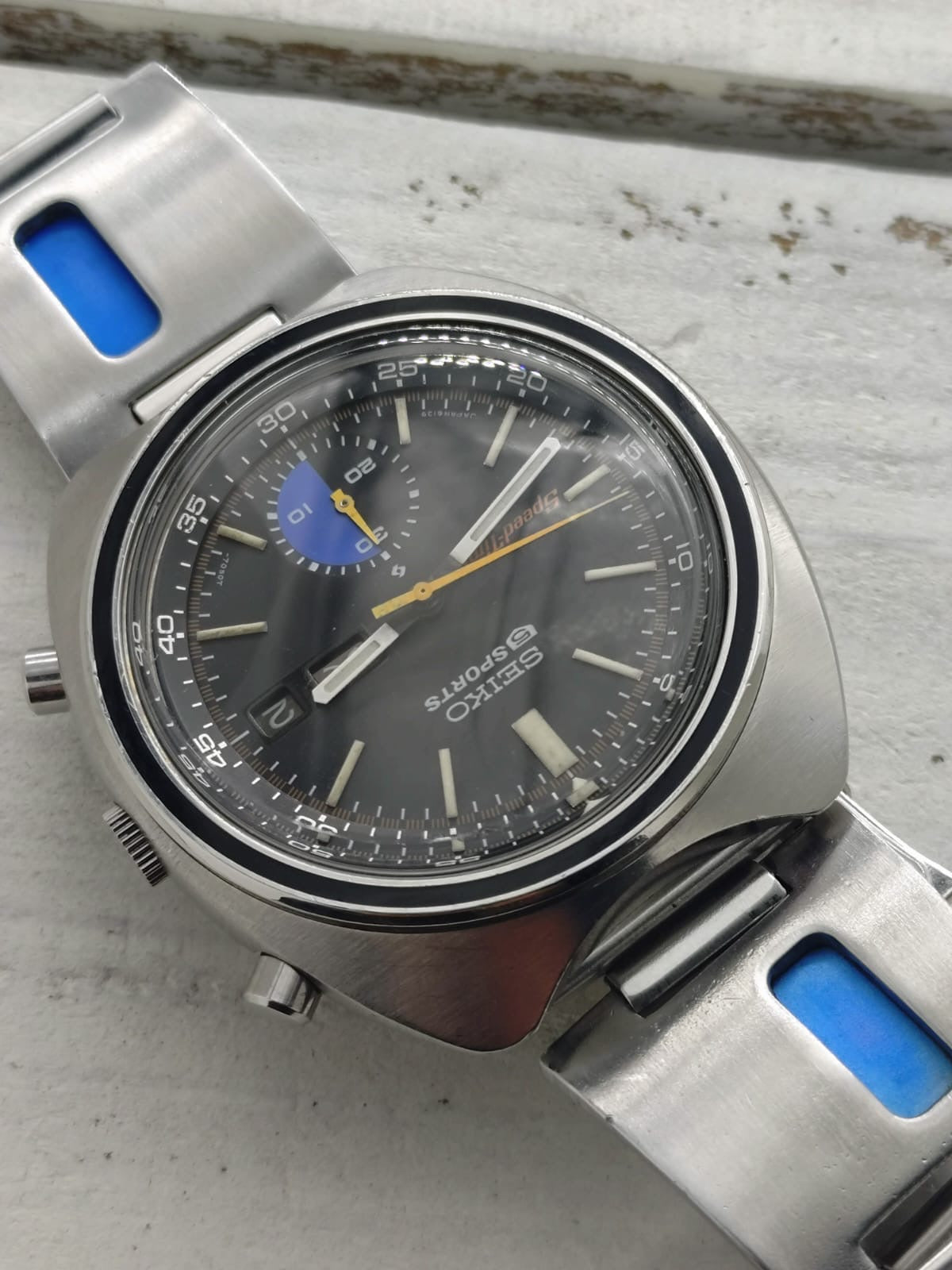

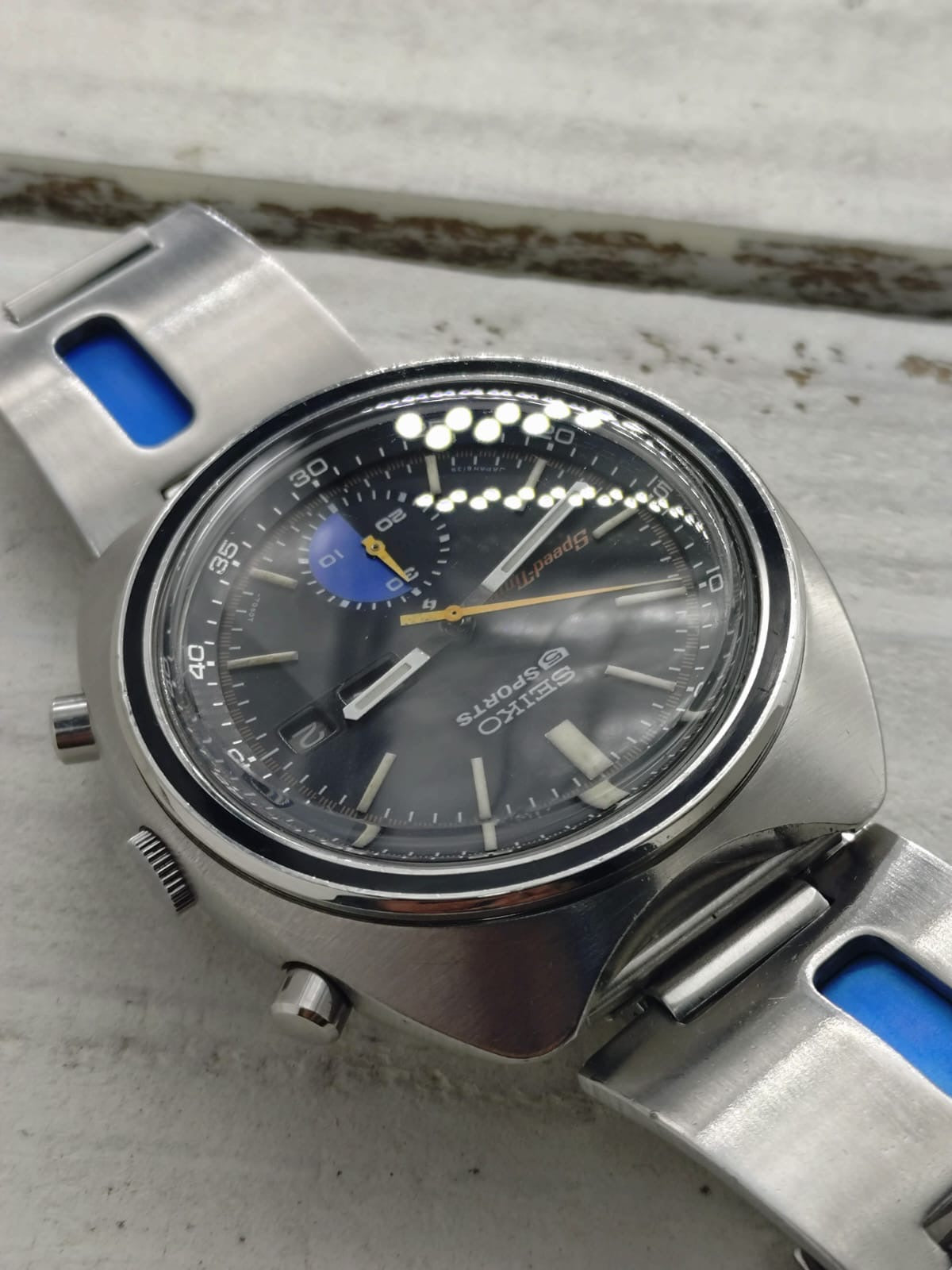

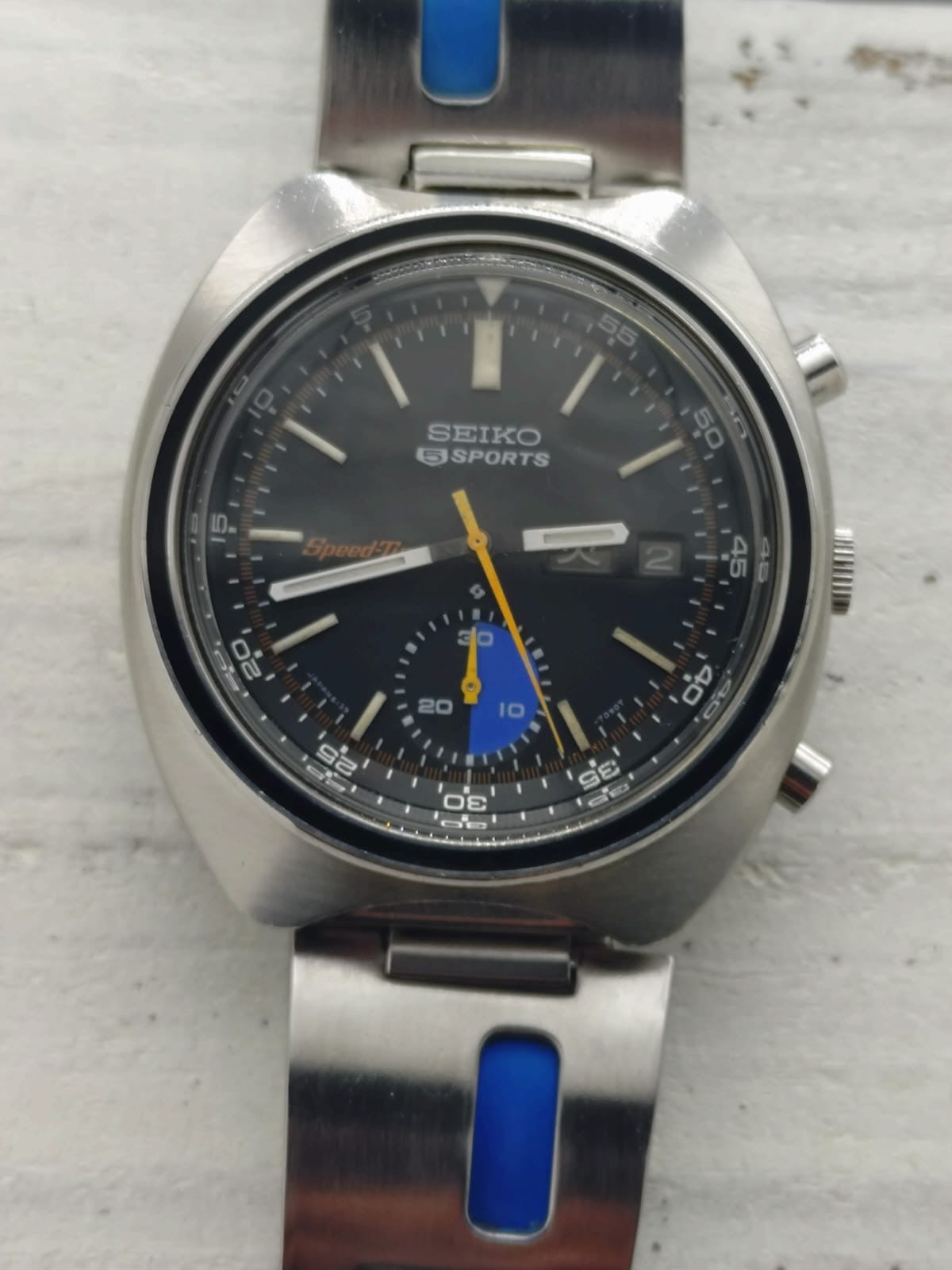

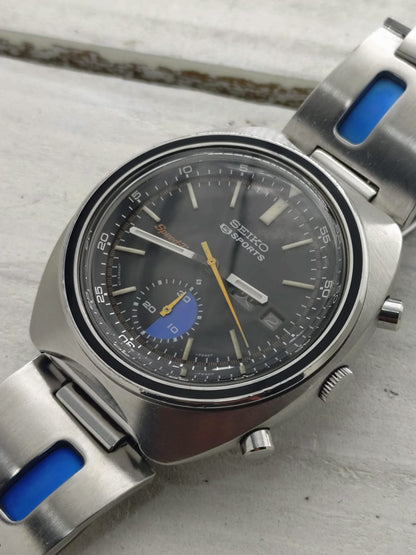

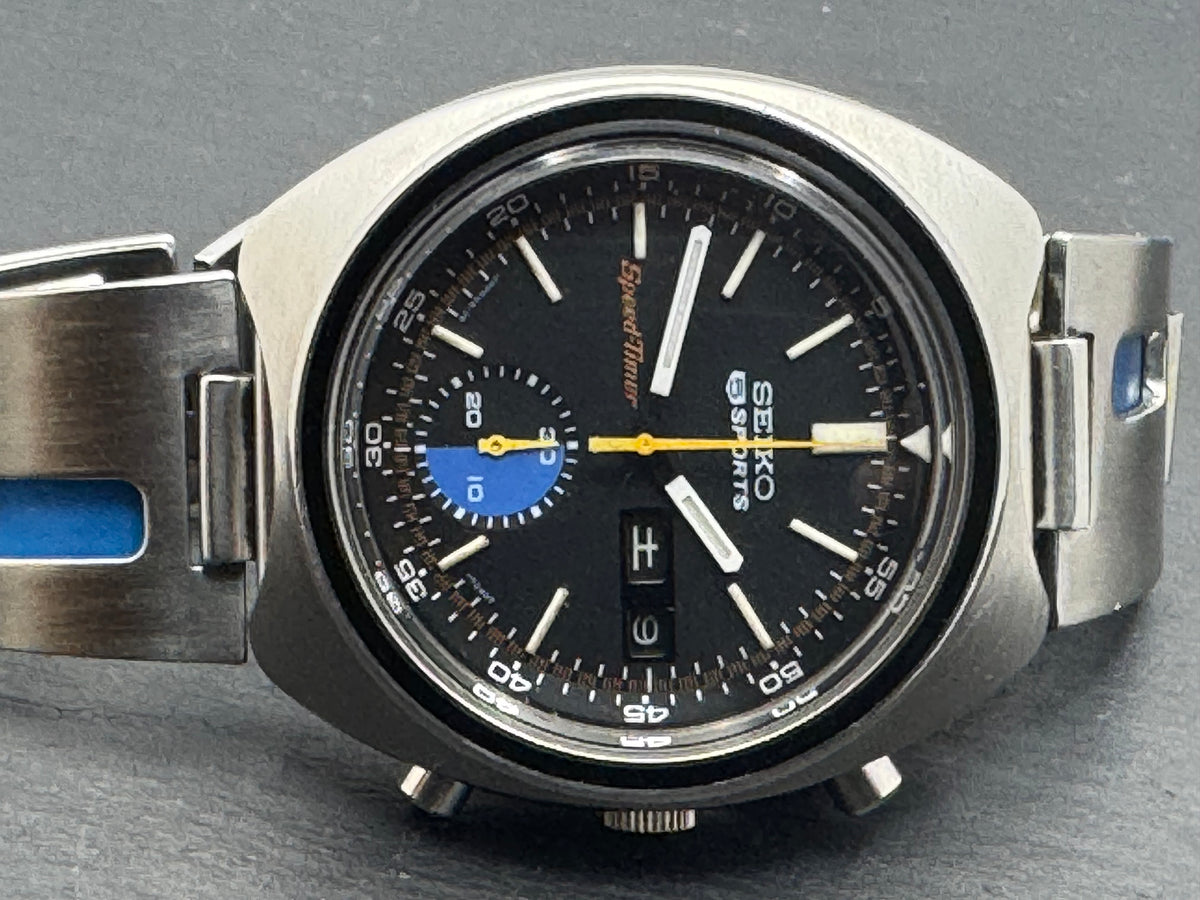

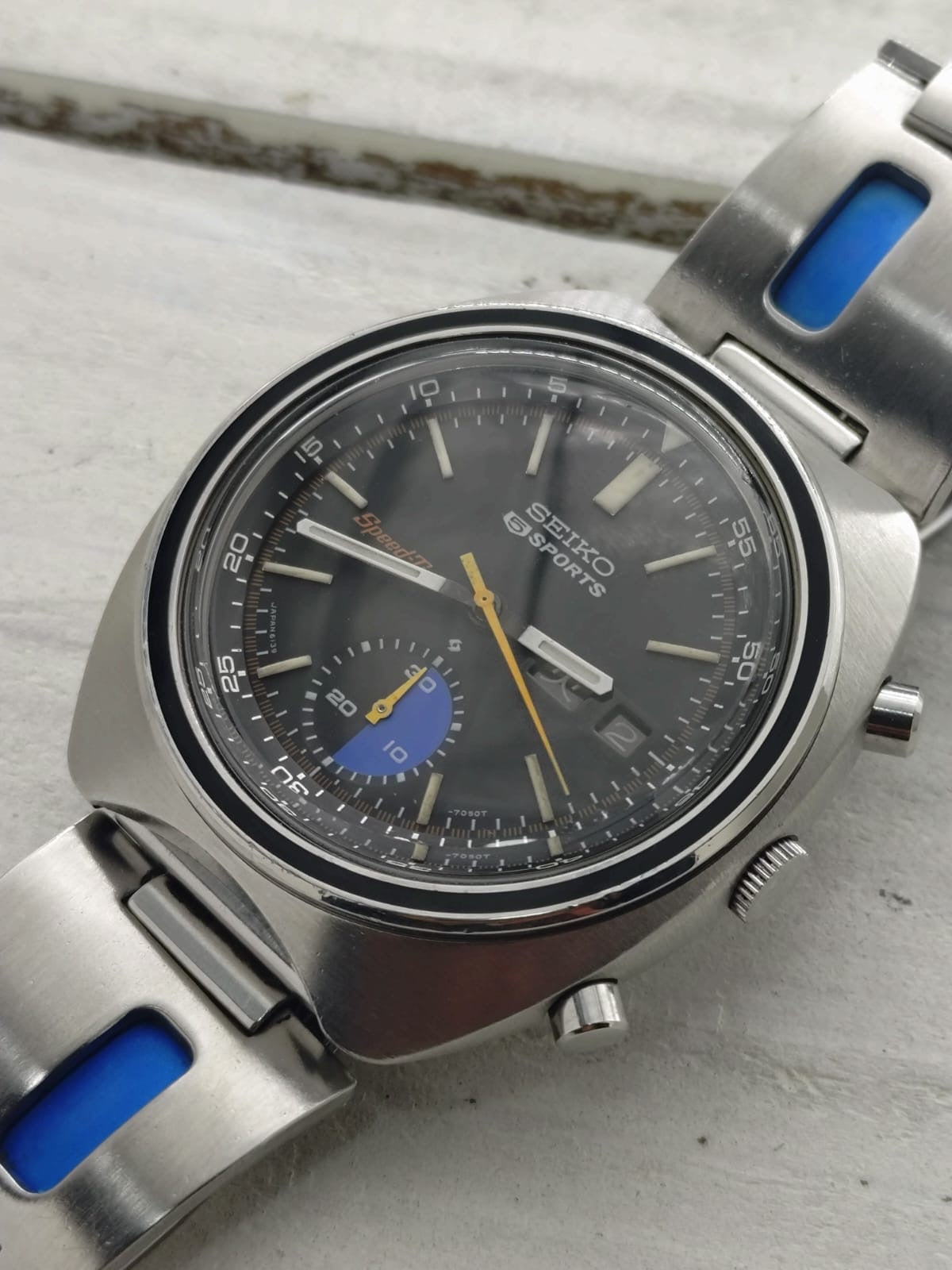

The dial is matte black and deeply set. A minute scale in Speed-Timer orange runs along the edge, forming the transition to the black rotating ring – a color accent that ties the entire design together.

The hour markers are applied batons with luminous material, accompanied by wide luminous hands and the orange chronograph hand. The regatta counter hand is also accented in orange.

The dial is signed with SEIKO and the 5 shield with the suffix SPORTS at the top, as well as the italicized Speed-Timer in orange to the left of the center. The calendar window at three o'clock has a black background.

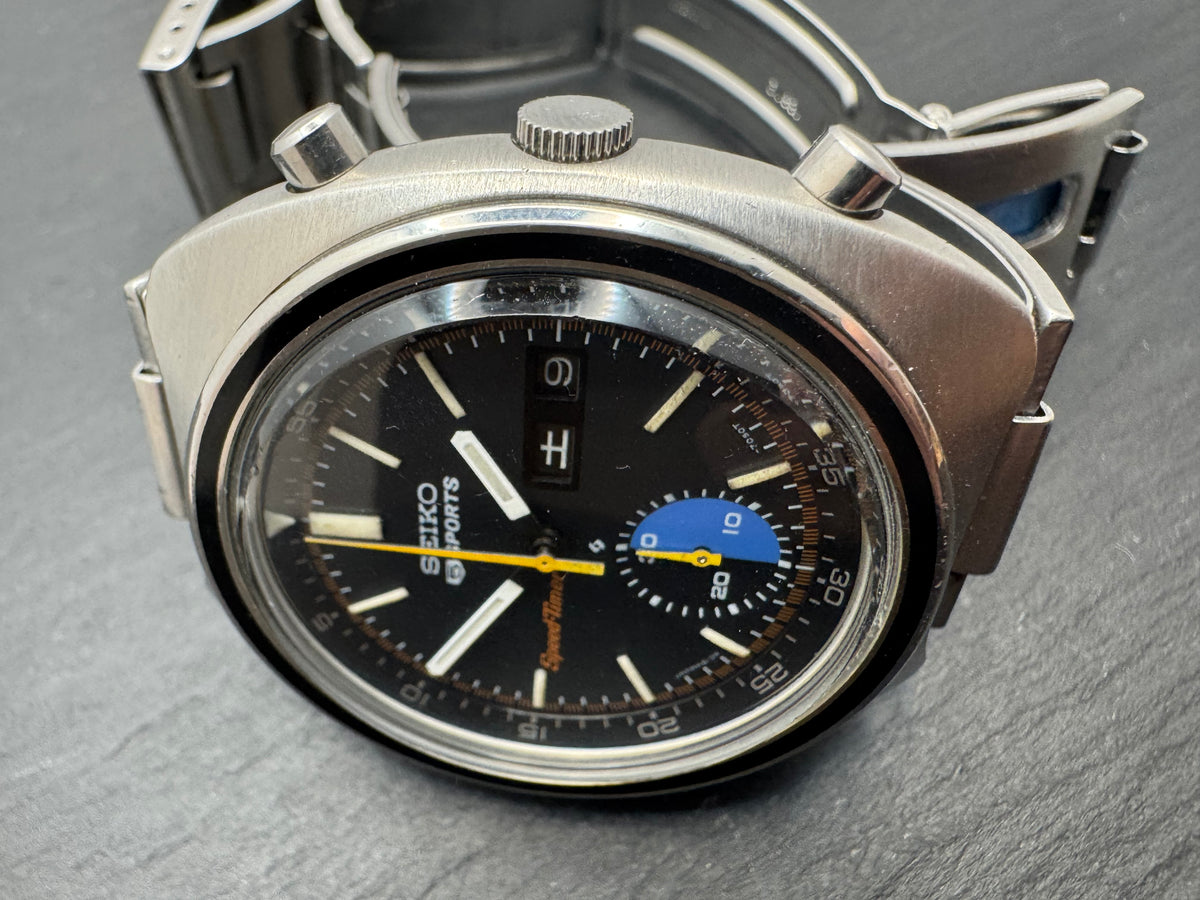

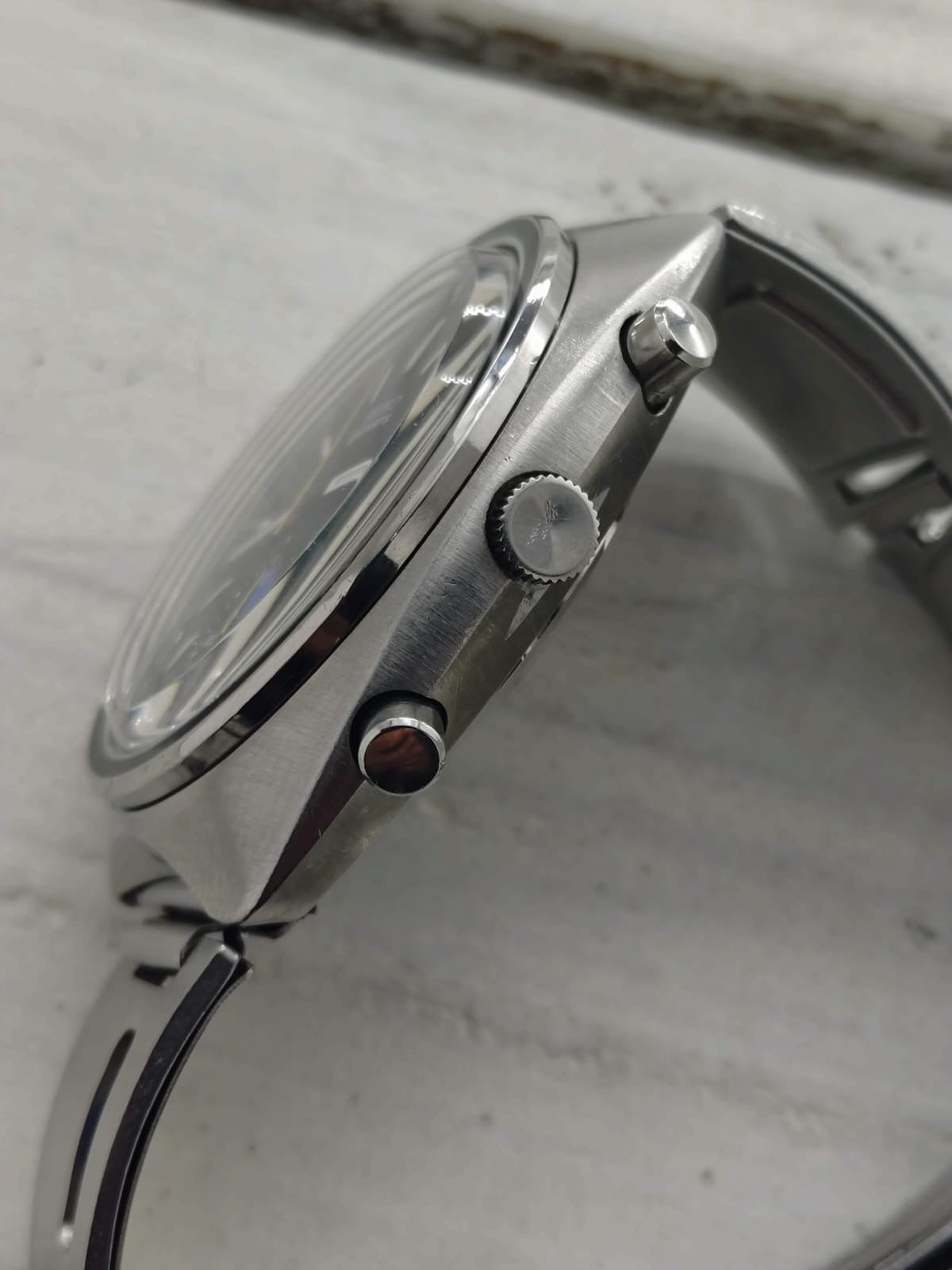

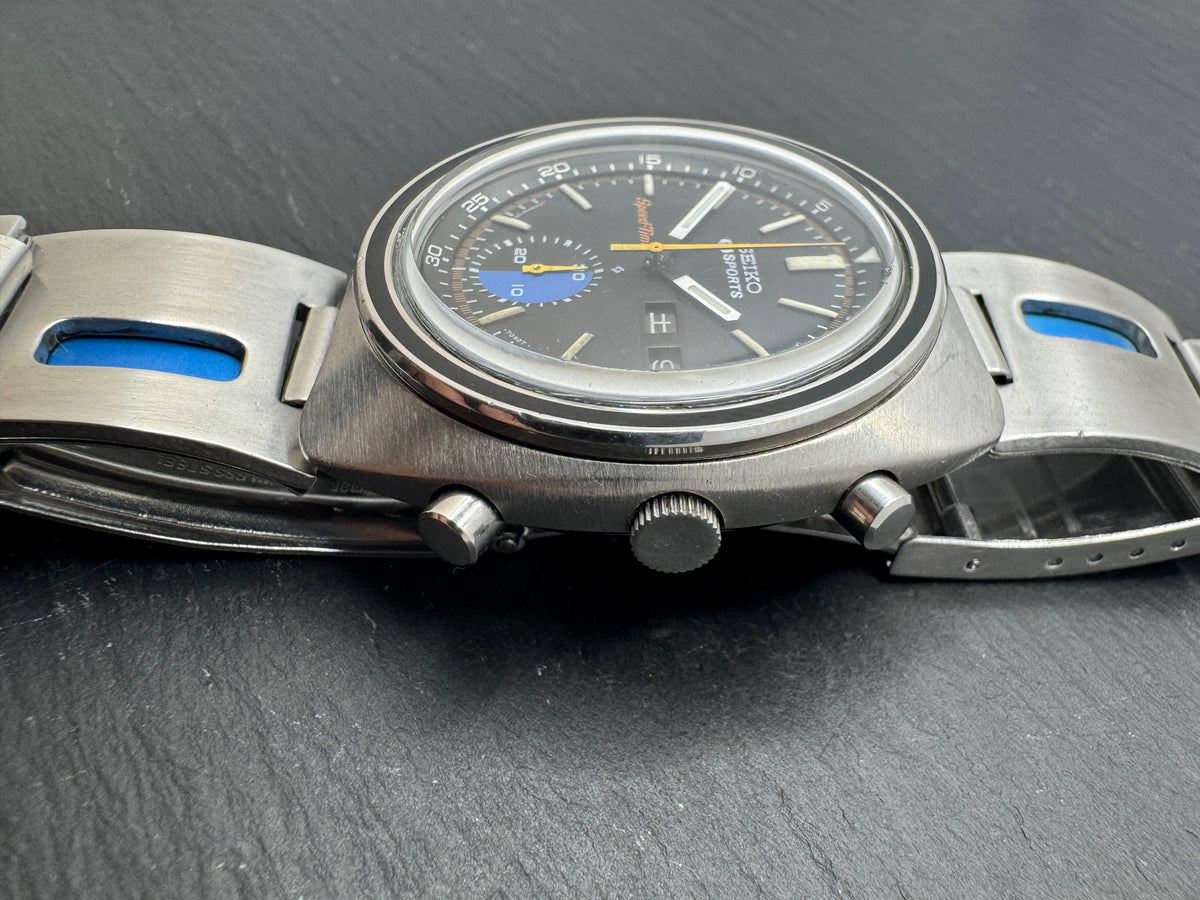

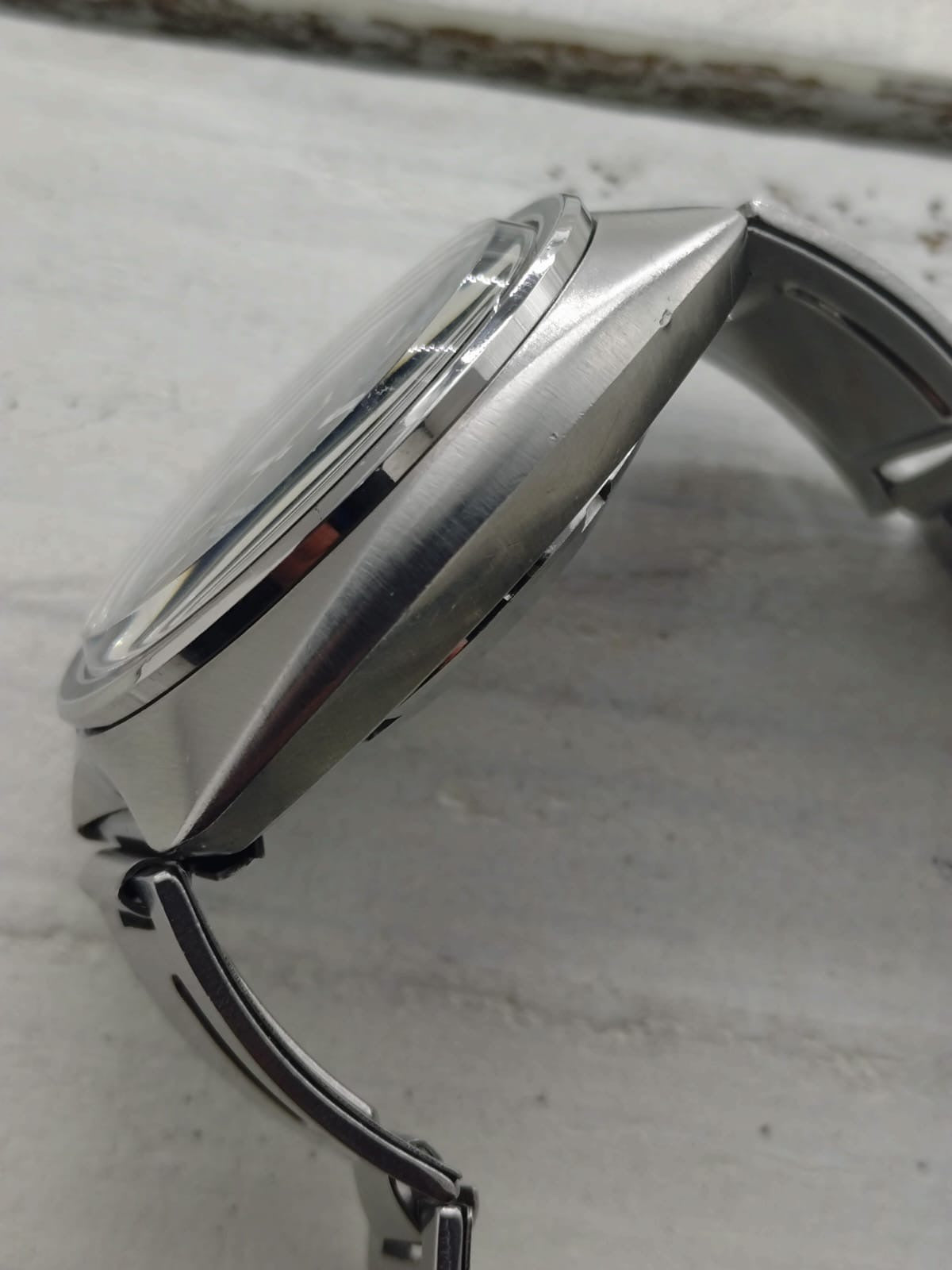

The stainless steel case is shaped as a sloping tonneau, with a brushed top, polished flanks, and a bezel with a black insert. At 41 mm in diameter and only 43.3 mm lug-to-lug and 14.4 mm high, it is substantial but comfortable on the wrist due to the short lugs.

Condition

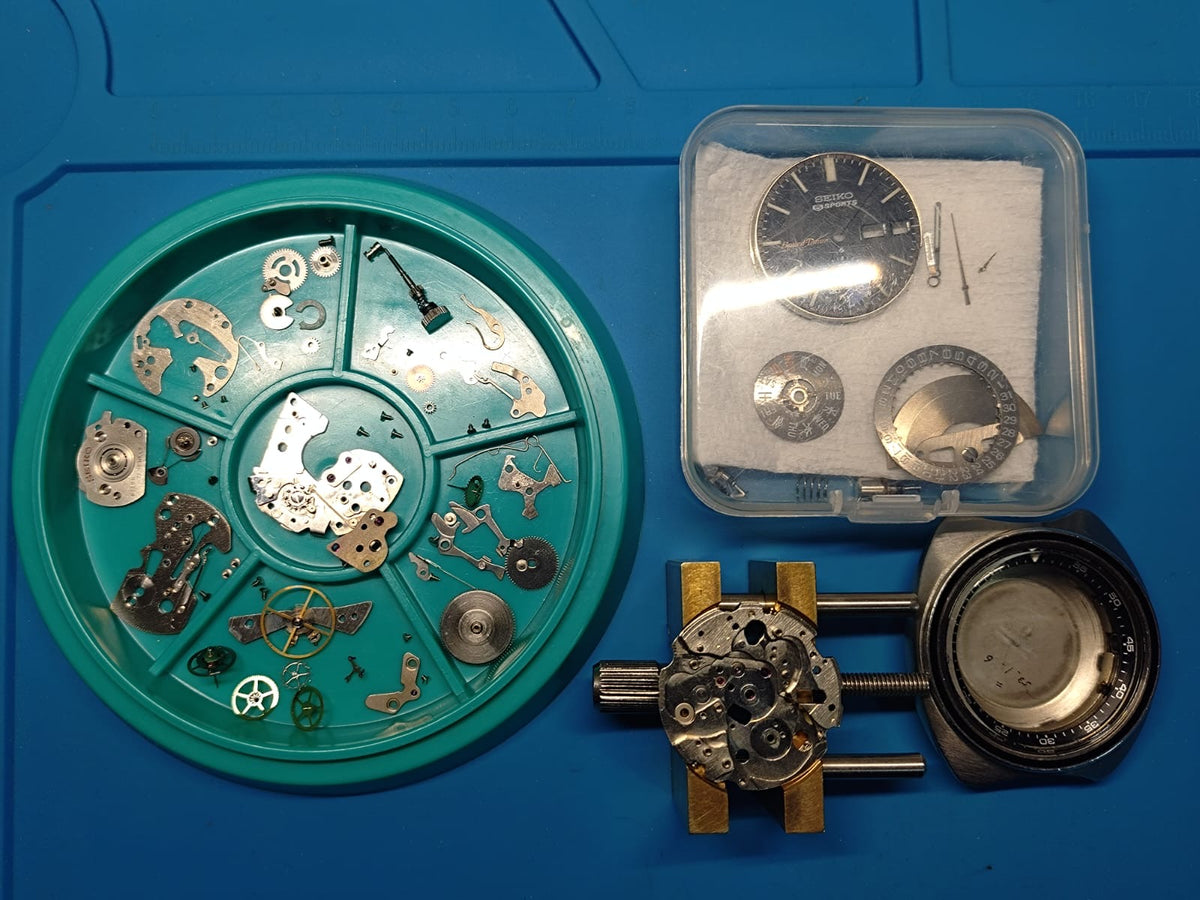

Technically perfect. The watch was professionally serviced in Japan in the spring/summer of 2026 – completely disassembled, cleaned, oiled, and regulated. The automatic winding, chronograph, internal bezel, and quick-set for day and date work flawlessly.

The dial is very well preserved: the matte black surface is uniform, the orange Speed-Timer lettering and the orange minute scale are bold and show no fading, and the blue of the regatta sector is rich. The applied indices are firmly in place, and the markings are complete and sharp.

The luminous material in the indices and hands has aged uniformly to a warm cream tone and no longer glows. This is the rule for watches of this period.

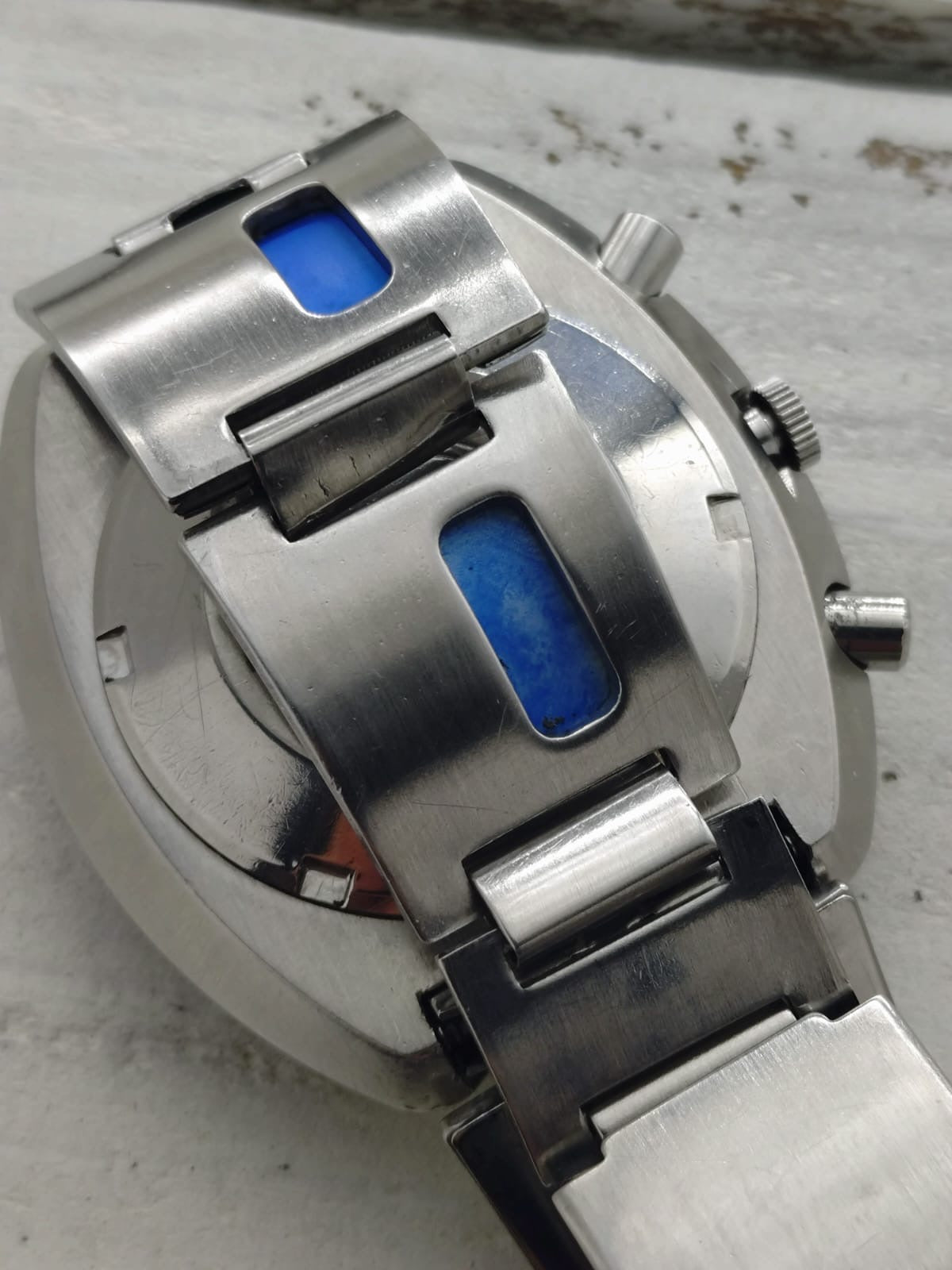

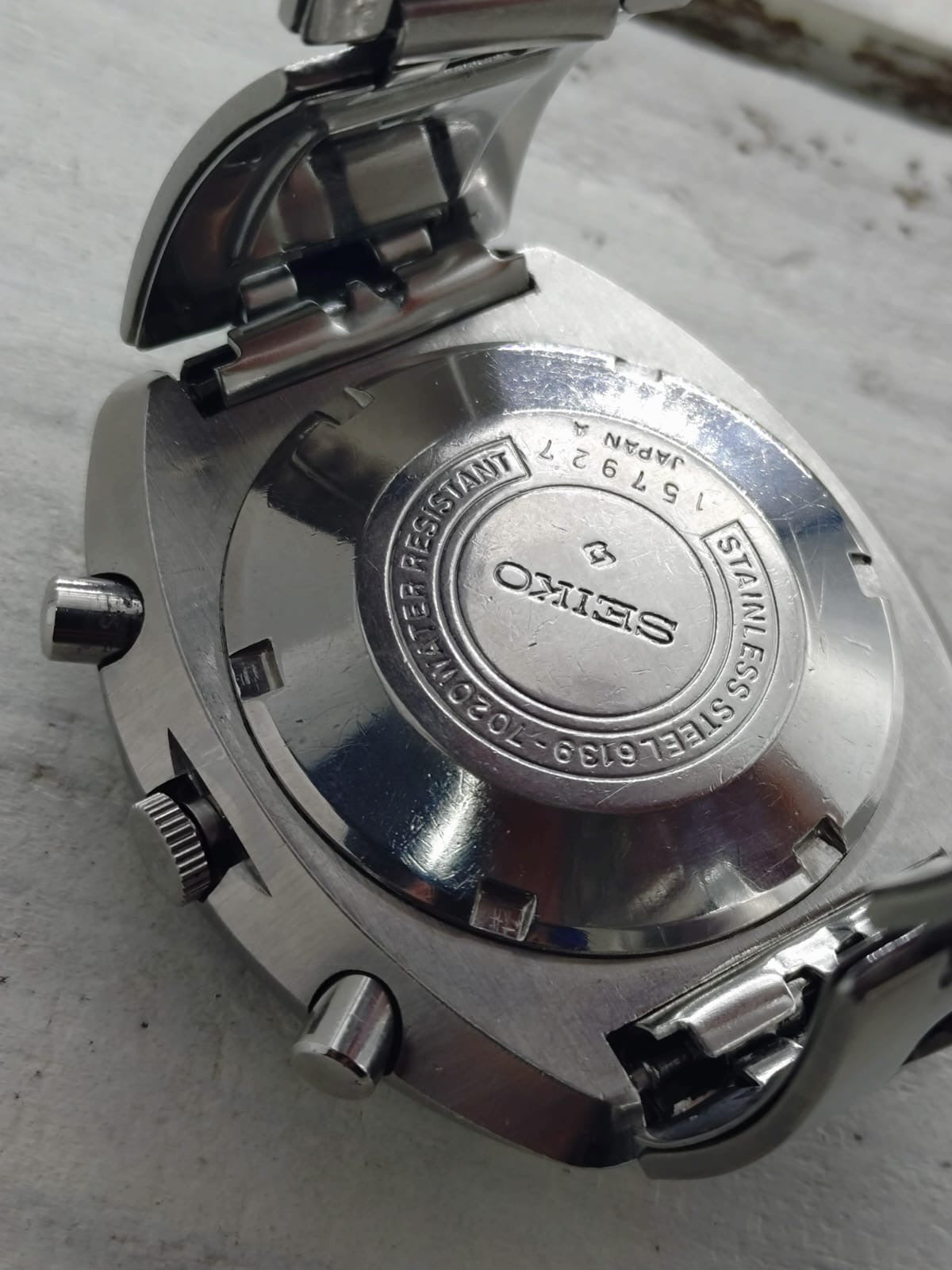

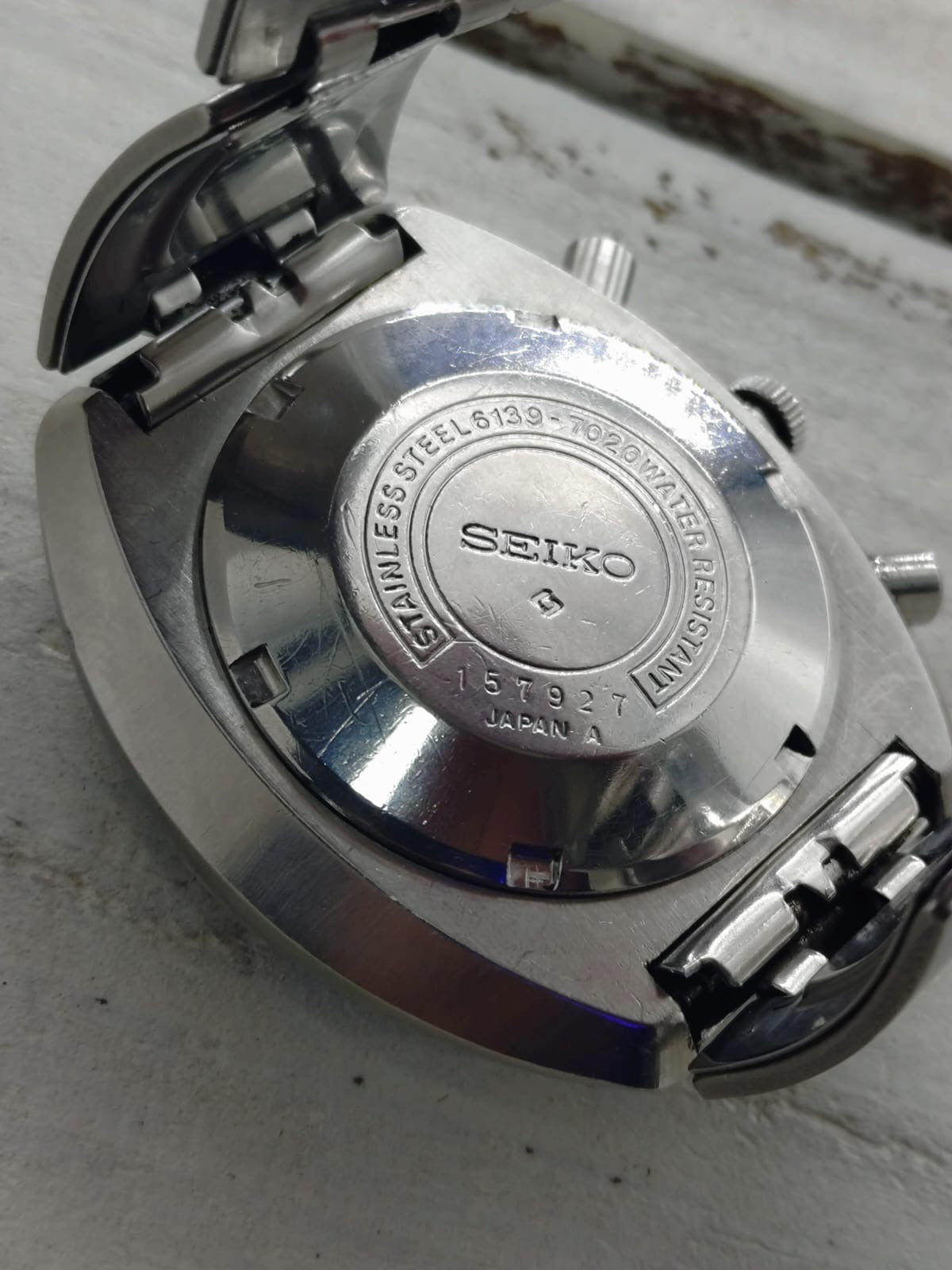

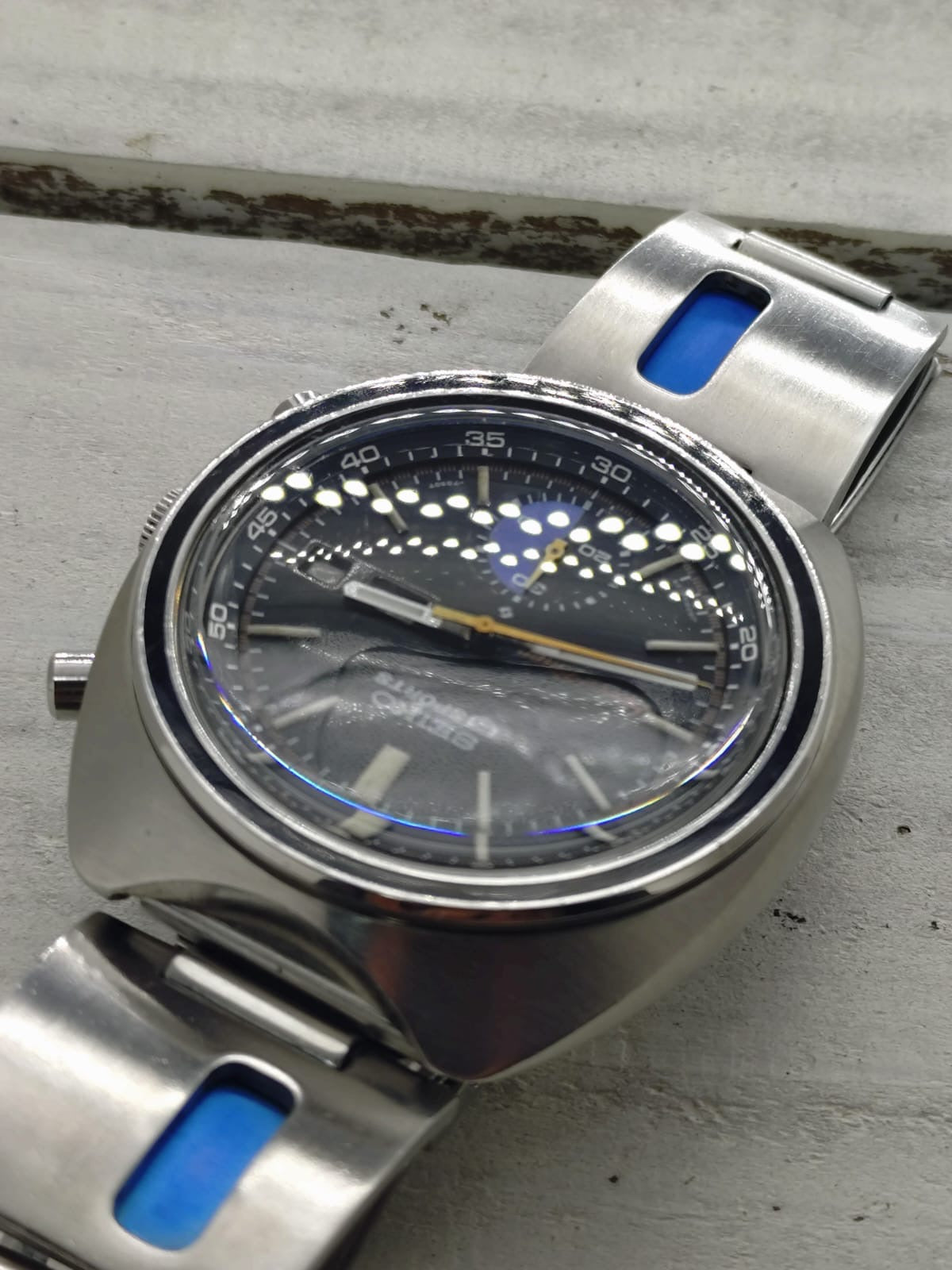

The stainless steel case shows age-appropriate signs of wear; the basic shape and the edge lines are well preserved, and the watch has not been over-polished. The black bezel insert is in good condition. The case back shows more significant wear, but all engravings – reference 6139-7020, serial number, Suwa mark – are complete and clearly legible. The crystal shows light signs of use.

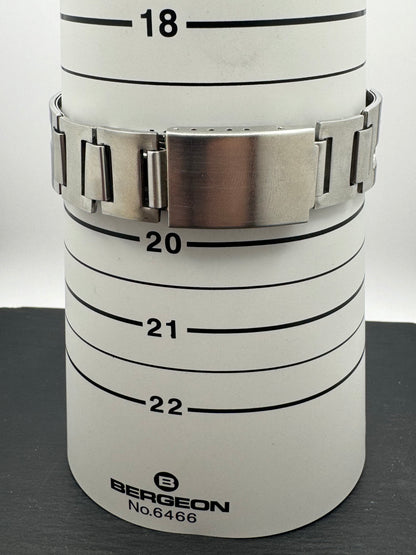

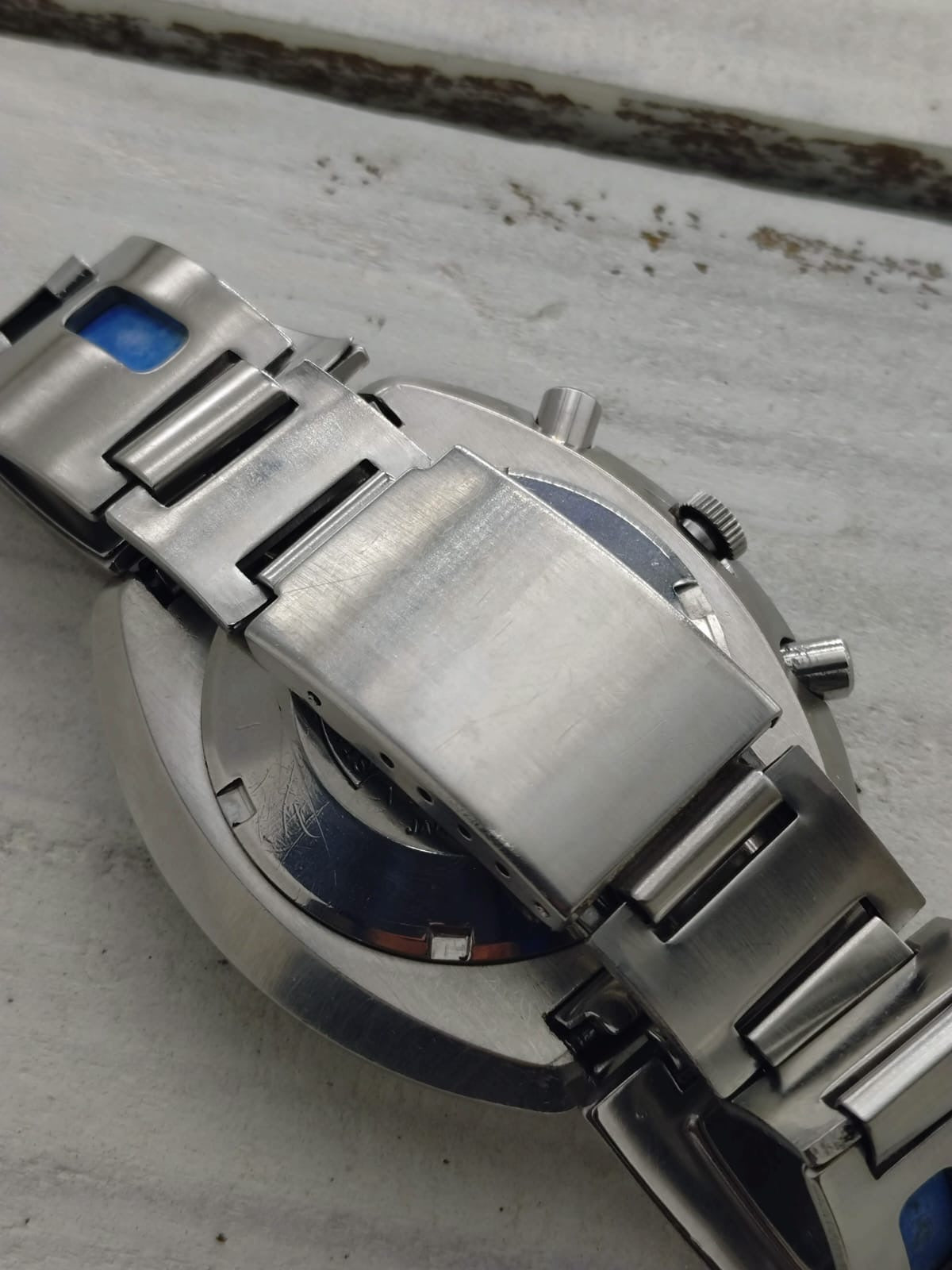

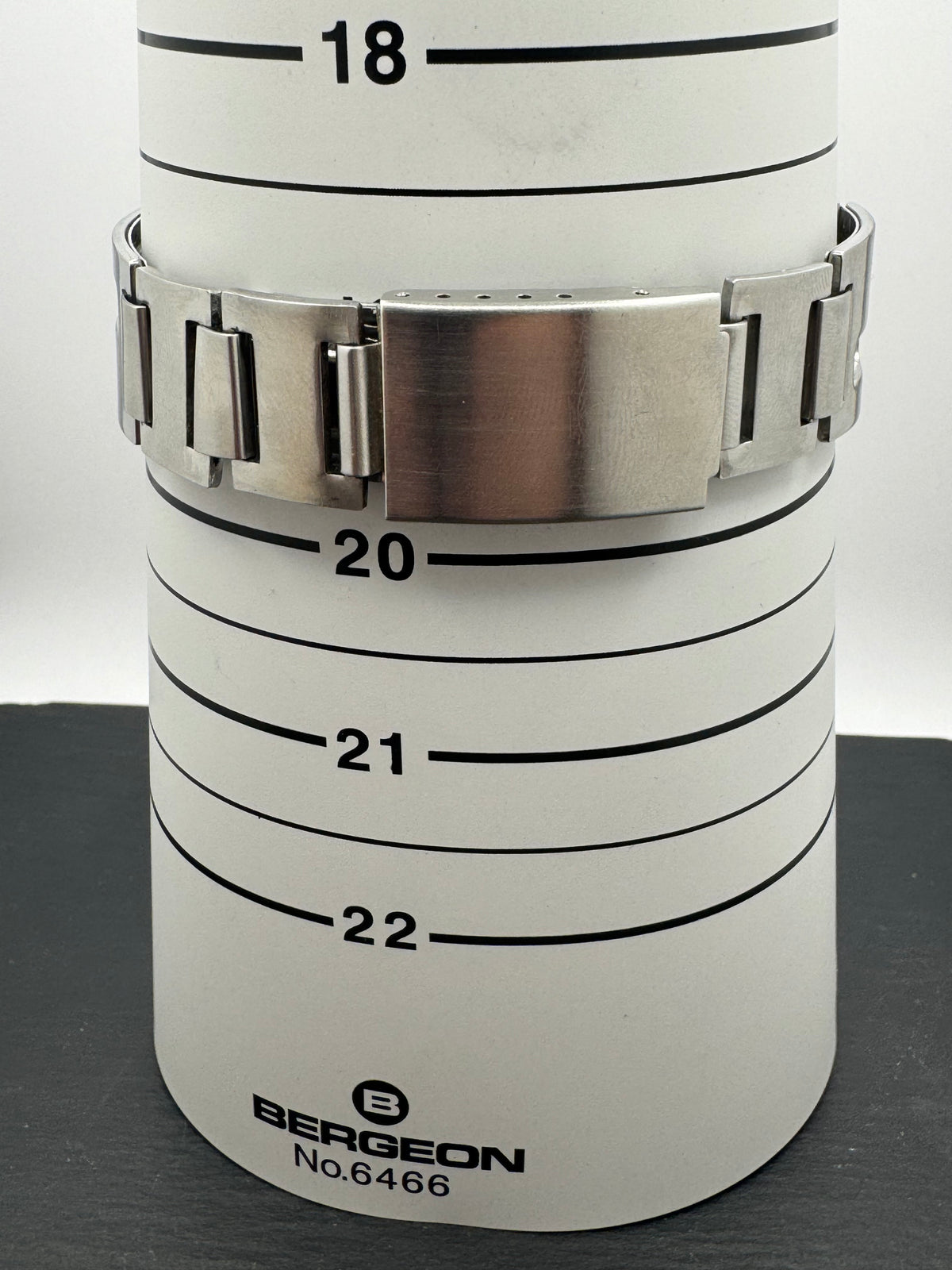

It is mounted on an aftermarket stainless steel bracelet; it is not the original Seiko band.

Technical specifications

• Brand / Line: Seiko 5 Sports, Speed-Timer
• Reference: 6139-7020
• Serial number: 157927
• Production date: May 1971
• Movement: Seiko caliber 6139, automatic chronograph with column wheel and vertical clutch, 21 jewels, 21,600 A/h
• Manufacturer: Suwa Seikosha, Japan
• Functions: Hours, minutes, chronograph with 30-minute counter and blue-accented regatta sector, internal rotating bezel via the crown, day and date with quick-set, day wheel bilingual (Japanese/English)
• Case: Stainless steel, tonneau shape, bezel with black insert
• Diameter (excluding crown): 41 mm
• Height: 14.4 mm
• Lug-to-lug: 43.3 mm
• Lug width: 19 mm
• Weight (incl. bracelet): 107 g
• Bracelet: Aftermarket stainless steel bracelet
• Crystal: Mineral glass
• Service: Spring/summer 2026, Japan – complete disassembly, cleaning, oiling, regulation

For whom

For collectors who want to wear one of the world's first automatic chronographs – with a column wheel and vertical clutch, i.e., the technically sophisticated construction, not the simplified one.

For anyone who likes Japanese sports watches from the early 1970s. Matte black dial, orange Speed-Timer lettering, blue regatta sector, Kanji day wheel, tonneau case – this design was available only in Japan and only for a few years.

For sailors who want a mechanical start countdown on their wrist instead of starting one on their phone.

And for anyone looking for a watch that can be worn without worry. This example is fifty-five years old and runs exactly as it should after its service.

Warranty (used)
This is a used item. The limitation period for claims for defects (statutory warranty) is 12 months from delivery.

Note
As this is a vintage watch, water resistance cannot be guaranteed. To protect the movement, the watch should not come into contact with water or moisture.
